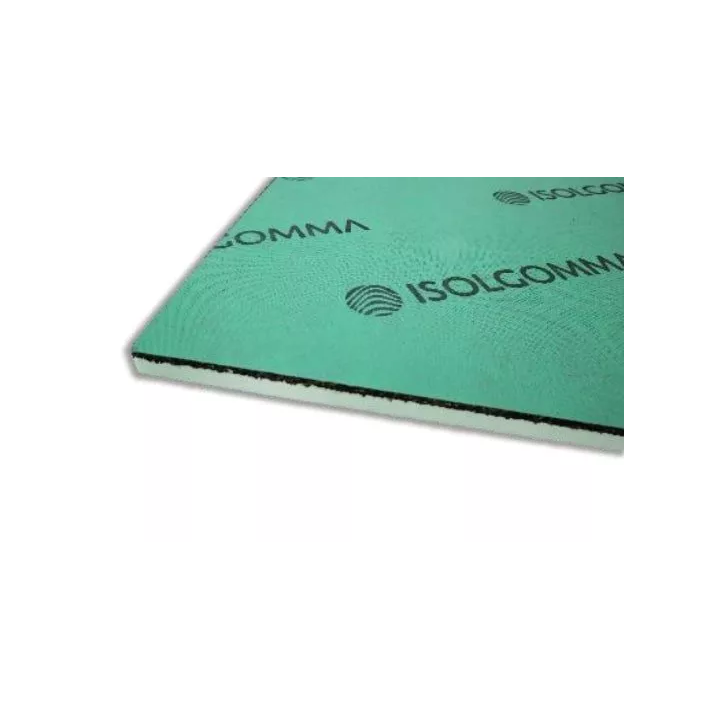

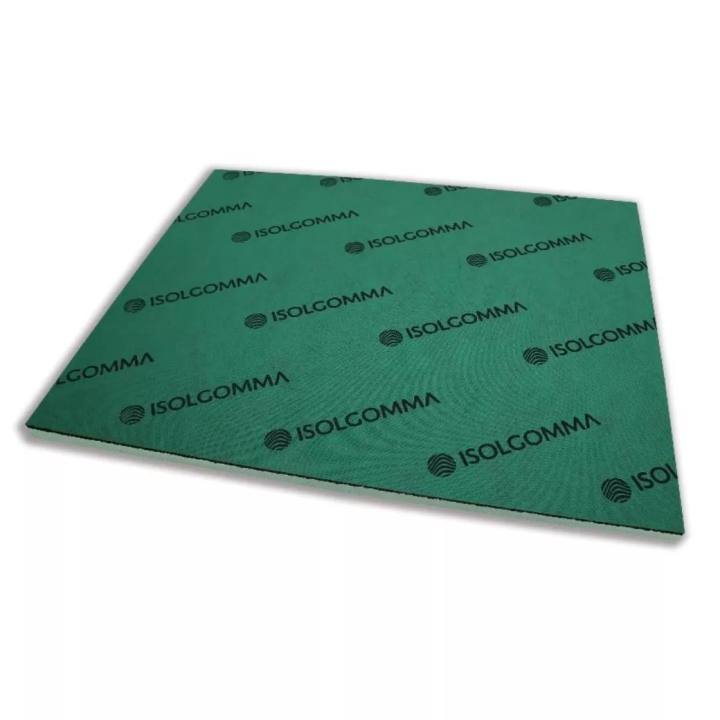

Isolgomma - Rewall 28 R acoustic insulation board

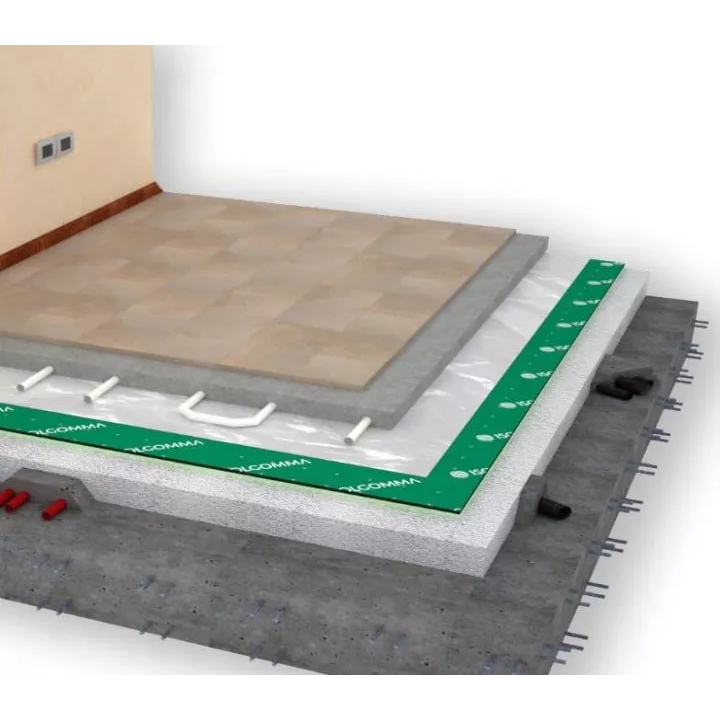

Sandwich soundproofing sandwich panel structure for the construction of a light floating floor, e.g. wooden. It consists of a layer of polyester wool and a rubber plate of fibers and SBR granules joined with polyurethane and hot pressed. It is used in the case of floors, where high sound insulation is required in shock and air, on wooden ceilings.

Technical data

• nominal thickness 28 mm
• 20 mm thick polyester wool
• wool density 100 kg / m ³
• rubber plate thickness 8 mm
• rubber layer density 800 kg / m ³
• length 1 m
• 1.2 m wide
• product surface mass: 8.4 kg / m ²
• coefficient of thermal conductivity 0.700 m ² K / W
• dynamic stiffness 9 MN / m ³
• fire resistance F
• green / black
• number m ² on a pallet 60
• pallet weight 610 kg

attention

The commercial size is the content of one pallet. However, a minimum purchase is possible - one plate, the price is set individually.
