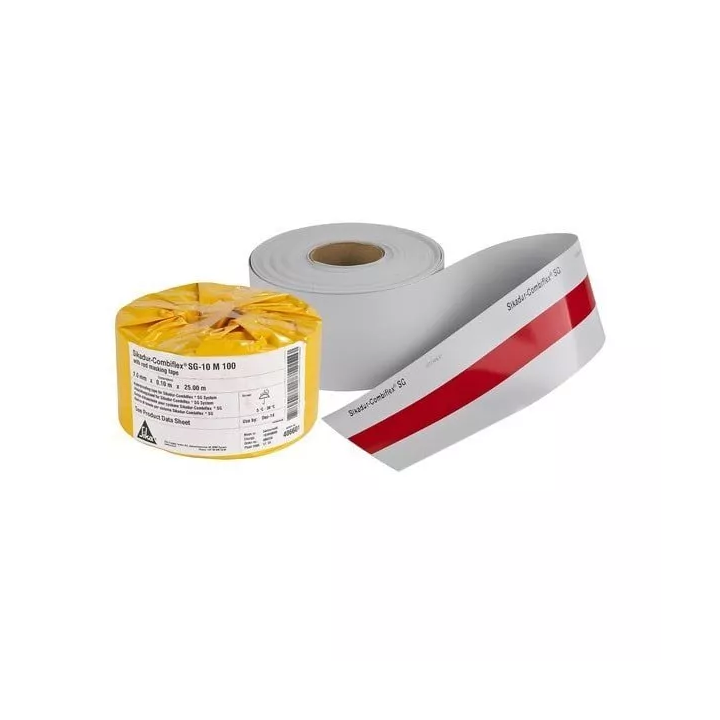

Sika - Sikadur Combiflex SG-10 M joint and crack sealing tape

Sealing tape for working gaps and scratches. It is waterproof, flexible, made of modified, flexible polyolefins (FPO) with increased adhesion to the substrate. The tape on one side has a red stripe in the center for easy installation.

Features

• increased traction
• very high flexibility
• good chemical resistance
• good aging resistance
• resistance to UV radiation
• root resistance
• preservation of properties in a wide temperature range
• does not contain plasticizer in
• hot air welded
• can be used in contact with drinking water
• is part of the Sikadur Combiflex SG System

Application

The tape is used to seal gaps, gaps and scratches in many types of structures, including tunnels and culverts, wastewater treatment plants, hydropower plants, underground structures, as well as water tanks (including drinking water). Used for sealing pipe penetrations, working joints, fig.

Technical data

• modified chemical base, flexible polyolefin (FPO)
• appearance flexible, light gray membrane
• effective thickness 1 mm
• mass per unit area 1050 g / m ²
• Shore D hardness ~ 35
• impact resistance ≥ 800 mm (method B)
• resistance to root penetration meets
• resistance to static loads ≥ 15 kg (method C)
• tensile strength ≥ 12 MPa (method A)
• shear resistance of the joint ≥ 300 N / 50 mm
• watertightness meets (method B, 24 h / 60 kPa)
• tightness after aging meets (70 C, 12 weeks)
• reaction to fire class E
• operating temperature from -10 C to +40 C
