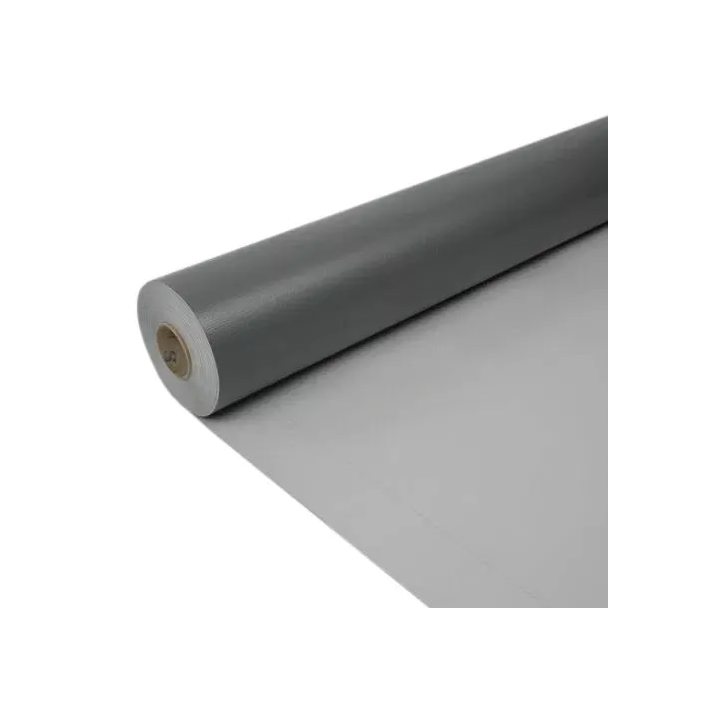

Sika - Sikaplan G-18 waterproofing membrane

Multilayer, reinforced with polyester mesh, synthetic roof membrane based on polyvinyl chloride (PVC), 1.8 mm thick. Contains UV radiation stabilizers and a flame retardant. The roof insulation membrane is used to cover flat surfaces of the roof - roof coverings mechanically attached to the roof structure base. is a hot air sealable membrane, intended for direct exposure, and suitable for use in all climatic zones.

Features

• high vapor permeability
• resistance to UV radiation
• resistance to the constant exposure to wind
• resistance to common environmental pollutants
• hot air welding without open fire
• possibility of recycling

Technical data

• matte surface
• dark gray bottom layer
• length 15 m / 20 m (-0% / + 5% (according to PN-EN 1848-2)
• width 1.54 m / 2.00 m -0.5% / + 1% (according to PN-EN 1848-2)
• effective thickness 1.8 mm (-5% / + 10% (according to PN-EN 1849-2)
• straightness ≤ 30 mm (according to PN-EN 1848-2)
• flatness ≤ 10 mm (according to PN-EN 1848-2)
• mass per unit area 2.2 kg / m -5% / + 10% (according to PN-EN 1849-2)
• impact resistance: hard substrate ≥ 500 mm; soft substrate ≥ 800 mm - according to PN-EN 12691
• hail resistance: rigid substrate ≥ 27 m / s; flexible substrate ≥ 32 m / s - according to PN-EN 13583
• tensile strength: longitudinally (md) ≥ 1000 N / 50 mm; transversely (cmd) ≥ 900 N / 50 mm - according to PN-EN 12311-2
• elongation: longitudinal (md) ≥ 15%; transverse (cmd) ≥ 15% - according to PN-EN 12311-2
• dimensional stability: longitudinally (md) ≤ | 0.5 |%; transverse (cmd) ≤ | 0.5 |% - according to PN-EN 1107-2
• tear strength: longitudinally (md) ≥ 150 N; transverse (cmd) ≥ 150 N - according to PN-EN 12310-2
• shear resistance of the joint ≥ 600 N / 50 mm (according to PN-EN 12317-2)
• bendability at low temperatures ≤ -25 C (according to PN-EN 495-5)
• behavior due to external fire B _ROOF (t1) <20 B _ROOF (t3) <10 - according to PN-EN 13501-5
• reaction to fire Class E (according to PN-EN ISO 11925-2, classification according to PN-EN 13501-1)
• resistance to UV radiation (> 5000 h / degree 0) (acc. to PN-EN 1297)
• water vapor permeability = 20,000 (according to PN-EN 1931)
• watertightness according to PN-EN 1928
• application conditions: ambient temperature minimum -15 C / maximum +60 C; substrate temperature minimum -25 C / maximum +60 C
• storage conditions rolls must be stored at a temperature between +5 C and +30 C, horizontally on pallets, protected against direct sunlight, rain, snow, ice, etc. do not put pallets or other materials on rolls during transport and storage; best to use within 5 years from the production date
• length 15 m / 20 m
