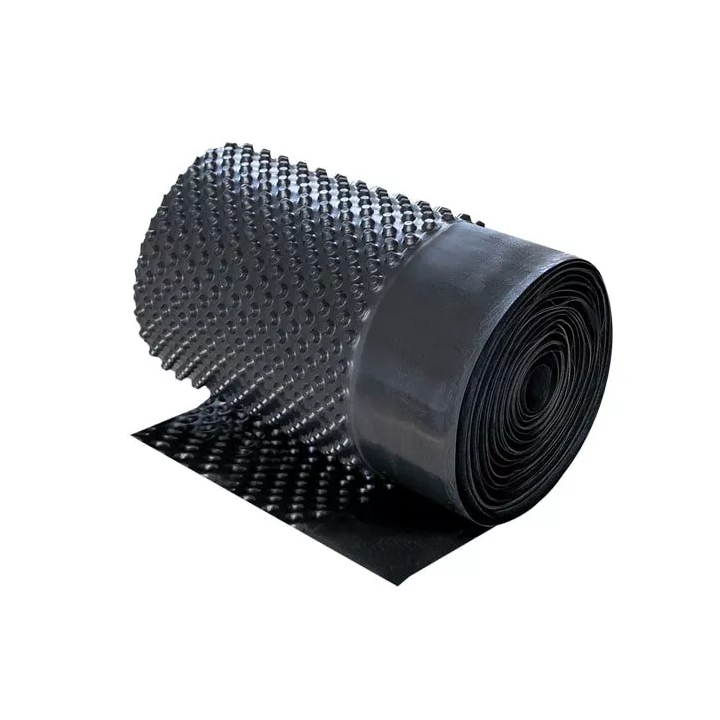

Secco - Geostandard 400 foundation foil for vertical insulation

Dimpled foil based on high-density polyethylene (HDPE) used for vertical insulation of foundations, ceilings, flat roofs and walls that are in direct contact with the ground. It is an additional acoustic and thermal insulation, as well as protection of the foundation against mechanical damage. It prevents damage resulting from movement in the terrain or settlement of the building.

Features

• resistant to root growth, fungi, bacteria and rodents
• resistant to pressure, tearing and breaking
• provides increased ventilation of the foundation surface in
• it does not undergo the decomposition process
• can be installed in any weather conditions

Technical data

• material - high density polyethylene (HDPE)
• black / graphite color
• weight 400 g / m ² (10%)
• embossing height 8 mm
• resistance to static loads ≥ 20 kg
• nail tearing strength: lengthwise ≥ 150 N; across ≥ 190 N
• watertight at 2 kPa
• watertight after artificial aging at 2 kPa
• compressive strength ≥ 140 kN / m ²
• impact resistance ≥ 200 mm
• reaction to fire class F
