Schiedel - system kominowy powietrzno-spalinowy Quadro Pro jednociągowy

Schiedel Quadro Pro is an air-flue gas system for removing flue gas from oil and gas-fired appliances in residential construction. Dedicated to boilers in condensing up to 30 kW - including those working in excess pressure, as well as the boiler with a closed combustion chamber.

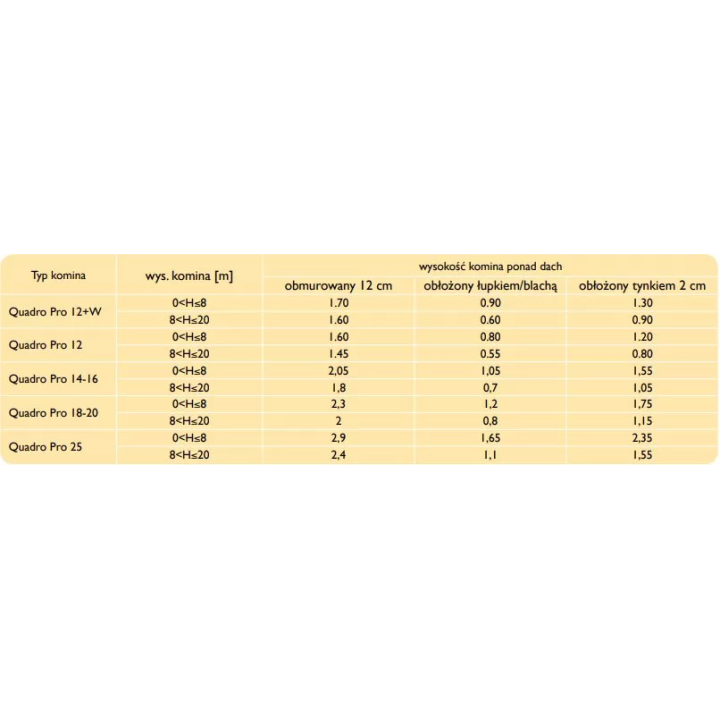

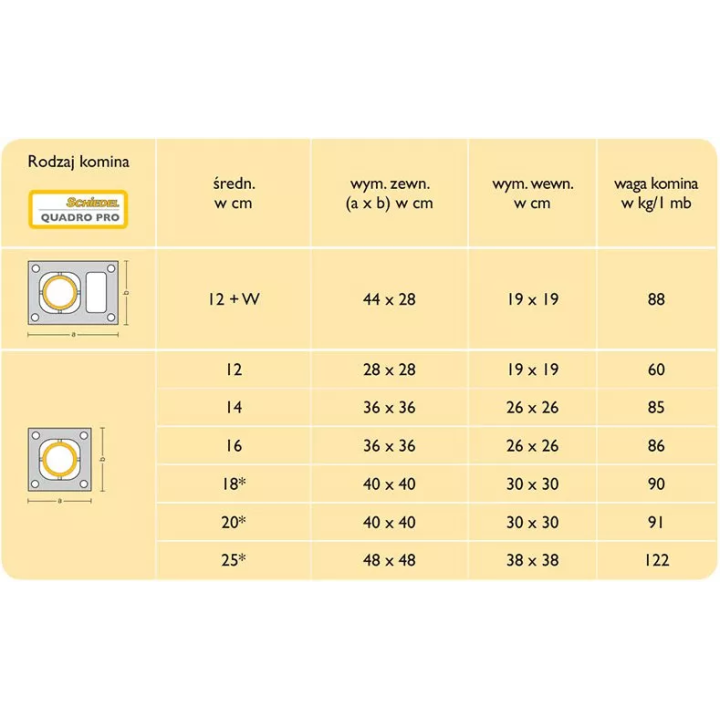

Technical data

• maximum flue gas temperature 200 C
• the possibility of working in hypertension and underpressure
• moisture resistance
• possibility of cooperation with boilers with closed combustion chamber
• isostatic thin-walled profile 66 cm ceramic pipe
• compressive strength element in the outer 50 m
• resistance to flow through the internal channel and fitting 0.0015 m
• resistance to alternating freezing and thawing
• energy saving by means of a heat exchanger
• low weight and dimensions
• 30 years warranty

Building

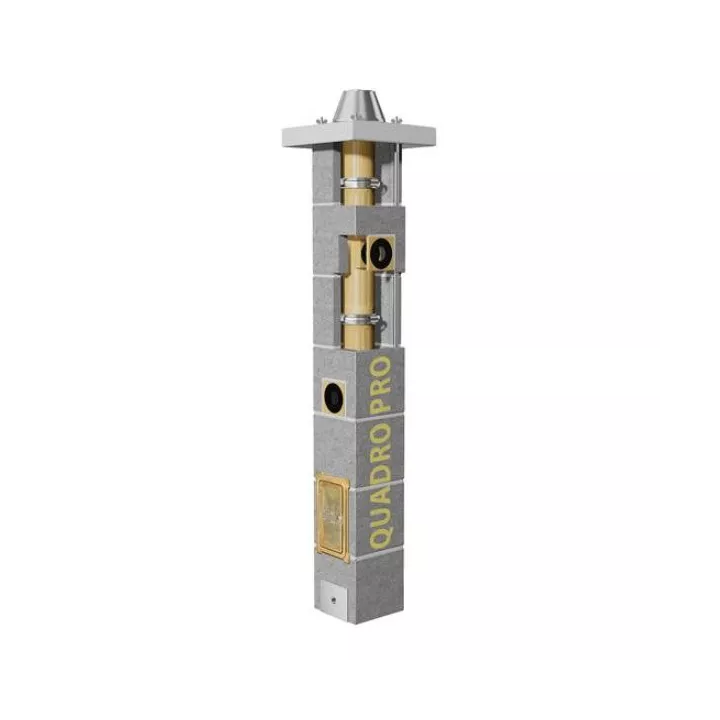

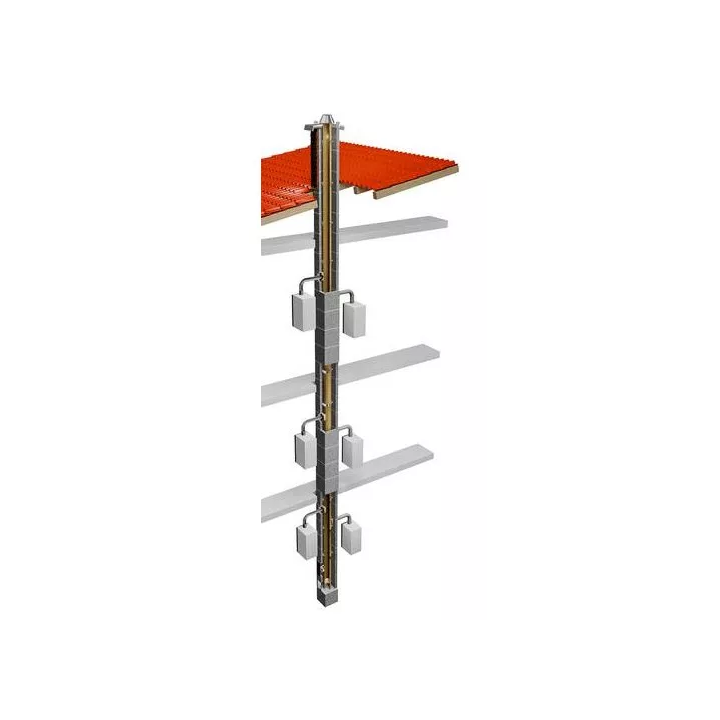

The Schiedel Quadro Pro chimney consists of thin-walled internal cables, spacers and a housing made of expanded clay concrete.

The blocks are made of expanded clay concrete with a density of 1150 kg / m ³ , combined with cement-lime mortar. In the hollow corners, if necessary, steel reinforcing bars are inserted to secure the entire outer structure.

Internal profiles are made of thin-walled ceramics made in isostatic pressing technology. They are connected with Rotempo mass. They are characterized by very low water absorption, smooth surface and high resistance to corrosive agents.

Quadro Pro basic package:

• cone
• lost formwork
• protective cover
• revision plug / pressure increasing element
• bottom metal shutter
• device for smoothing welds
• template for applying mortar
• Rotempo squeezer
• Rotempo mass (3 pcs.)
• cleaning door
• template for marking the hole in the blocks
• door cleaning sticker
• installation instructions
