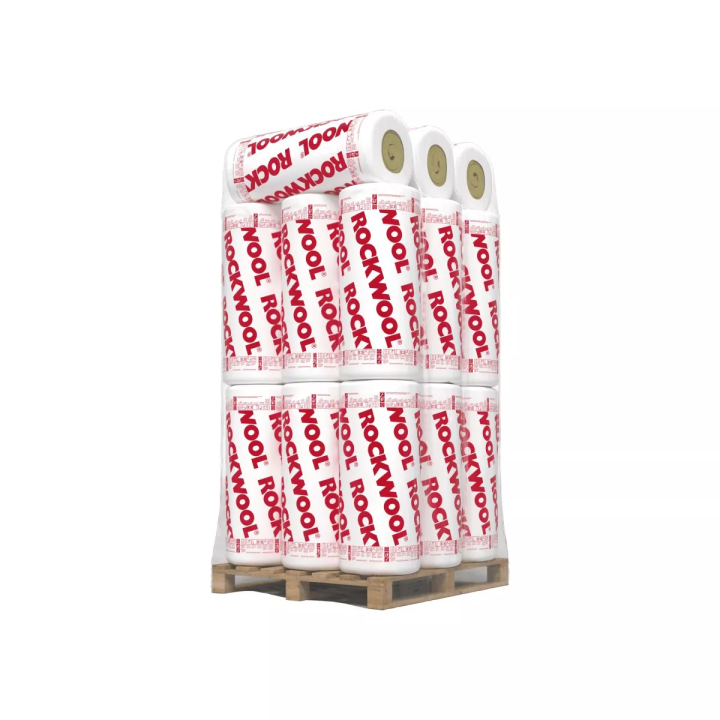

Rockwool - Conlit Mat

Non-flammable stone wool mat with one-sided galvanized steel mesh lining, sewn with galvanized wire through the mat layer with a chain stitch at 10 cm intervals, and with a layer of glass fiber reinforced aluminum foil between the mesh and the mat. It is used to make single-layer fireproofing inside the building of ventilation ducts with a circular cross-section. The system can be used for insulation of pipes with a diameter of up to 1000 mm and working pressure from -500 Pa to +500 Pa.

Technical data

• declared thermal conductivity coefficient λ 0.038
• reaction to fire class A1
• length 2500 mm
• width 1000 mm
• thickness 100 mm
