Rockwool - Teclit PS buffer zone

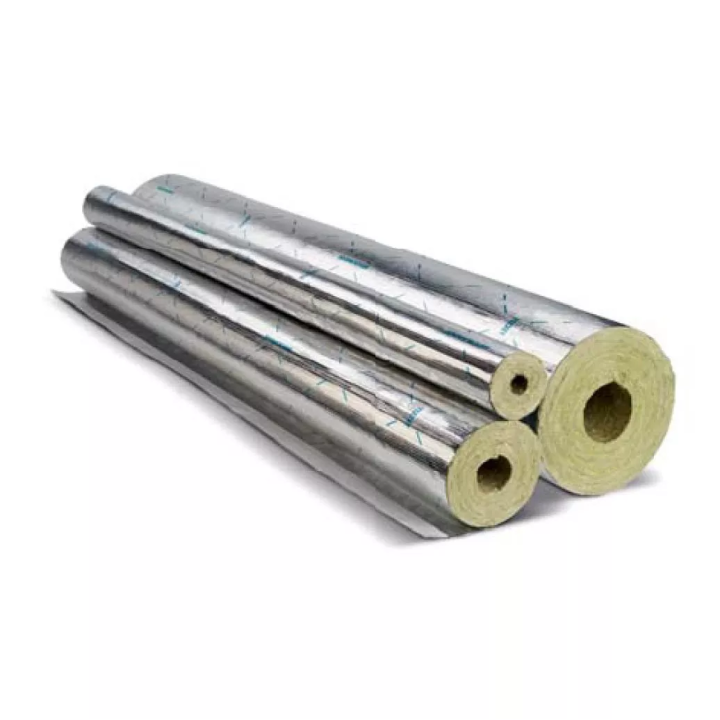

Non-flammable insulation pipeline in refrigeration buildings. TECLIT PS made of stone wool is produced in a unique technology, thanks to which it has excellent technical parameters, exceptional quality and durability. The cover has a thick lining reinforced with aluminum foil and a self-adhesive overlap. The vapor-proof aluminum membrane perfectly protects the insulation against mechanical damage and the risk of vapor condensation. The self-adhesive overlap ensures a permanent connection and vapor tightness of the outer covering of the cover.

• Product code: MW EN 14303-T9 (T8 for D0 <150) -ST (+) 250-WS1-MV2-CL10
• Standard: EN 14303: 2009 + A1: 2013
• CE certificate: 0751-CPR.2-008.3-01
• The air layer thickness r is equivalent to water vapor diffusion Sd> 1500 m
• Ion content in chloride dissolved in water: not more than 10 ppm (10 mg / 1 kg of product)

Application

The TECLIT PS cover has been specially designed for installations that conduct cold media in buildings. The product is an element of the complete TECLIT system, which is used to insulate the pipeline in steel, stainless steel, copper and plastic with a medium temperature from 0 C to 250 C. The wide range of diameters and thickness of the TECLIT PS cover is adapted to the current requirements for HVAC installations.
