Purmo - Ventil Compact CV 11 radiator

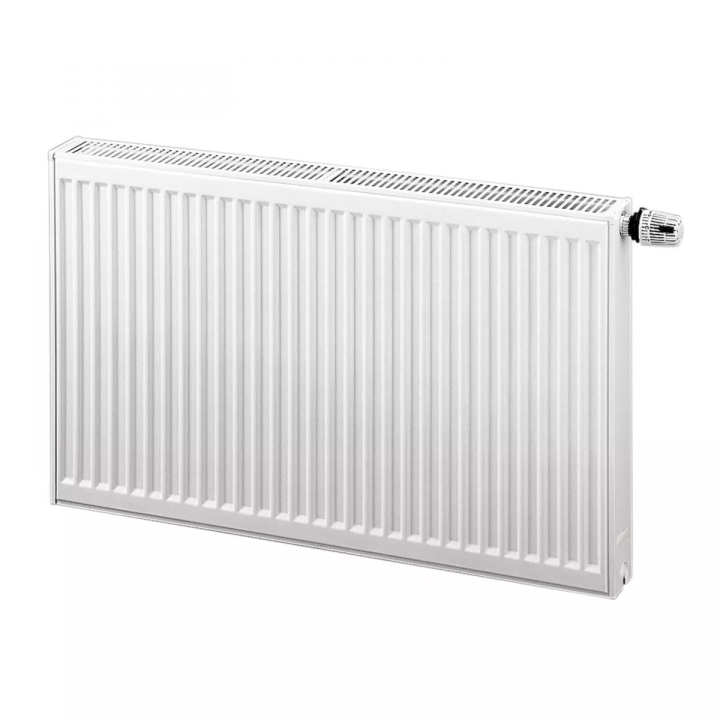

Ventil Compact is a steel plate radiator for the room, with profiled heating plates and convection elements. It has side covers and a grill cover. Equipped with a built-in valve insert with Oventrop pre-adjustment. Possibility of connecting from below or from the side, as a hanging or standing radiator (using a rack in). Dedicated to living spaces - kitchen, bedroom, living room.

Technical data

• made of high quality deep-pressed sheet steel, cold-rolled DC 01 (according to PN-EN 10130)
• 2 x G 1/2 '' from the bottom right side (left on order); 4 x G 1/2 '' side
• working pressure up to 10 bar
• pressure 13 bar (during production); 12 bar (after installing)
• maximum temperature 110 C
• height from 300 to 900 mm
• length from 400 to 3000 mm
• spacing of vertical channel in water 33.3 mm
• white RAL 9016
• 10 years warranty

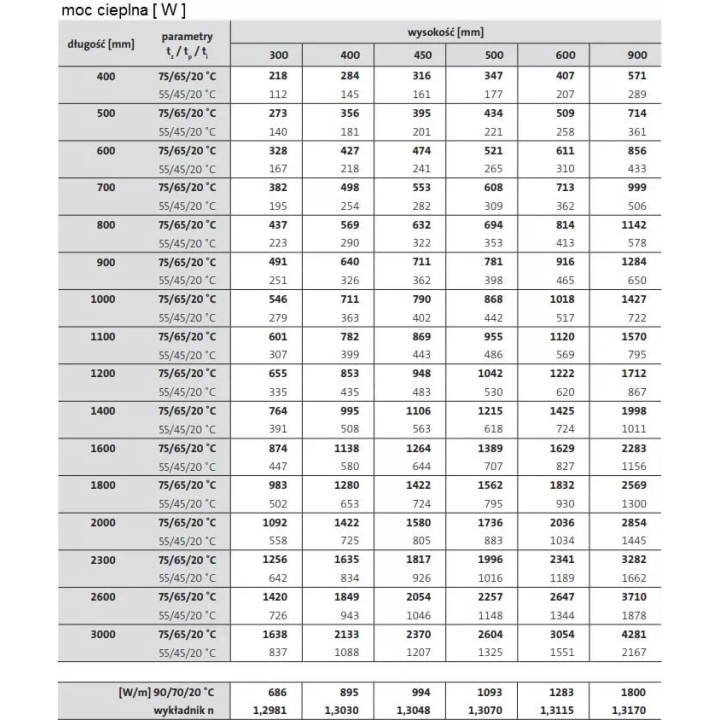

Thermal power of the radiator given according to PN-EN 442.

For an additional fee, it is possible to buy a radiator in a different color from the RAL palette. Complete with a radiator cap, vent, suspensions.
