Purmo - Narbonne NA 22 convector heater

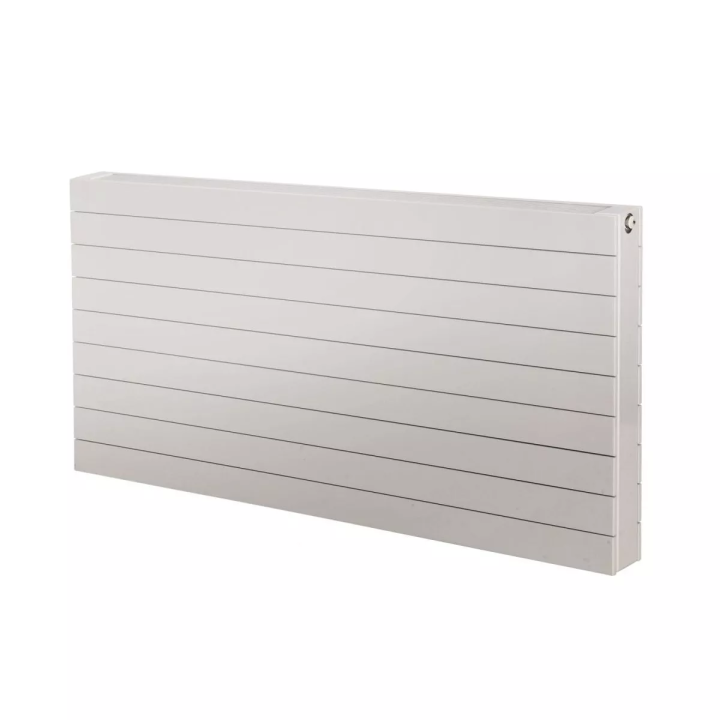

Narbonne is a convector radiator made of a series of interconnected profiled steel elements in heating rectangular sections. It has two side covers and a grill cover. Heating profiles are horizontally assembled with 2 mm gaps between them, which allow free thermal expansion of individual elements.

Technical data

• made of rectangular steel wire
• 4 x G 1/2 '' side connections
• working pressure 5 bar
• maximum temperature 110 C
• height from 70 to 790 mm

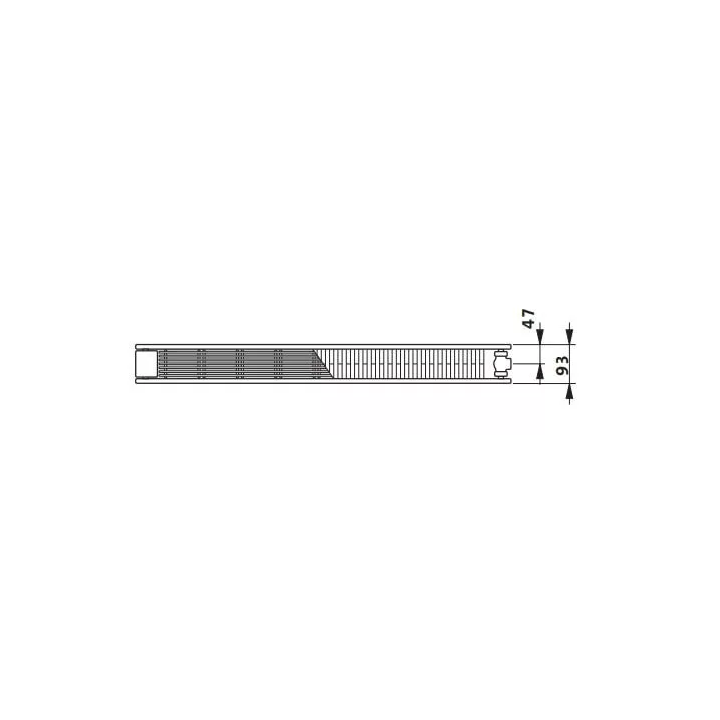

• depth 93 mm
• length from 500 to 4000 mm
• stroke every 100 mm; from 1400 mm in length every 200 mm
• white RAL 9016
• 10 years warranty

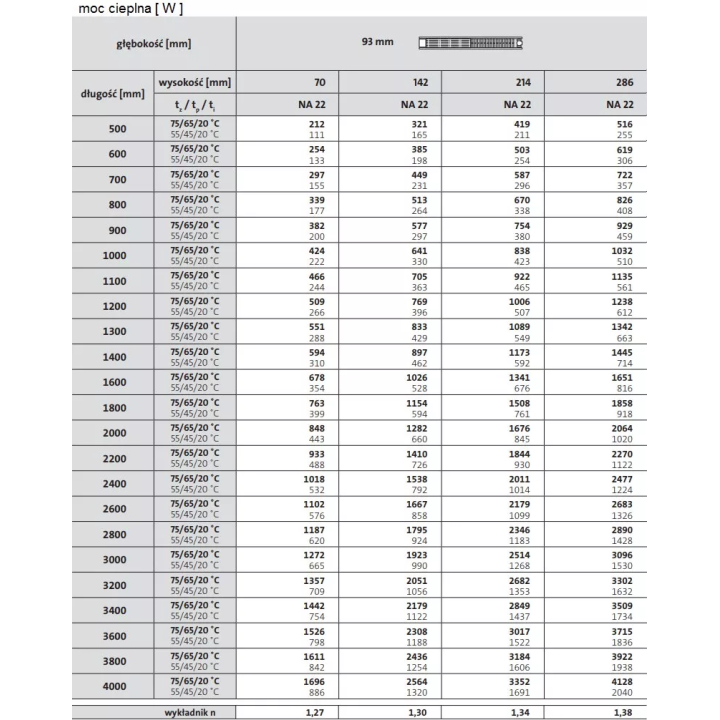

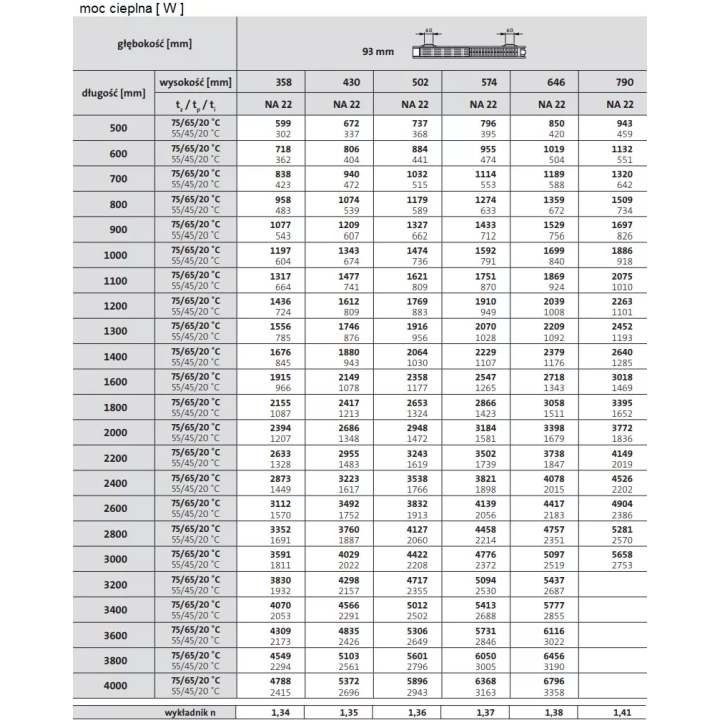

Thermal power of the radiator given according to PN-EN 442.

For an additional fee, it is possible to buy a radiator in a different color from the RAL palette. Complete with the radiator, the plug and the vent, as well as radiators from 358 mm to 790 mm in height are fitted with mounting brackets welded on the back of the radiator (up to 286 mm in height radiators are supplied without hangers).

Note: For a height of 70 mm, only cross connection is possible.
