Prodmax - double-walled insulated, heat-resistant chimney system - tee

Insulated heat resistant insulation is used when connecting the flue to the chimney system.

variants

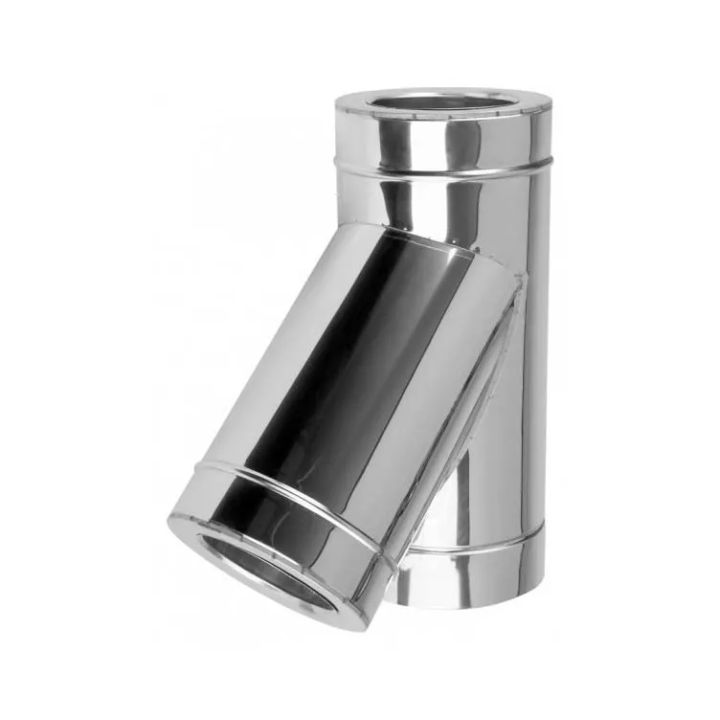

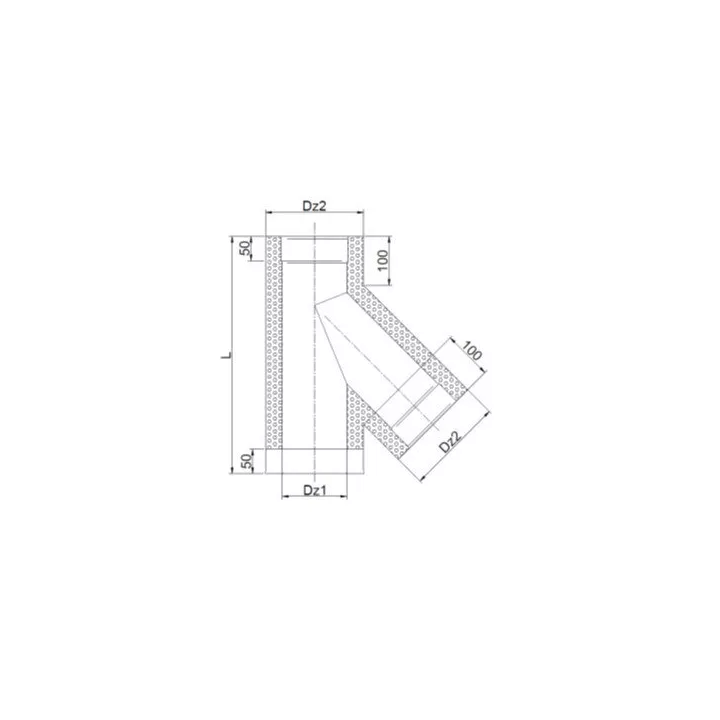

• 45 degree insulated driver

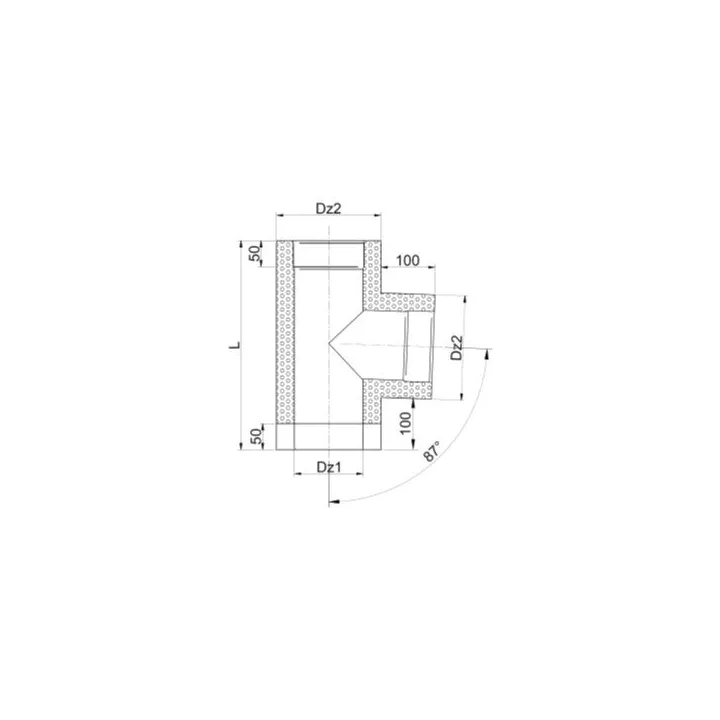

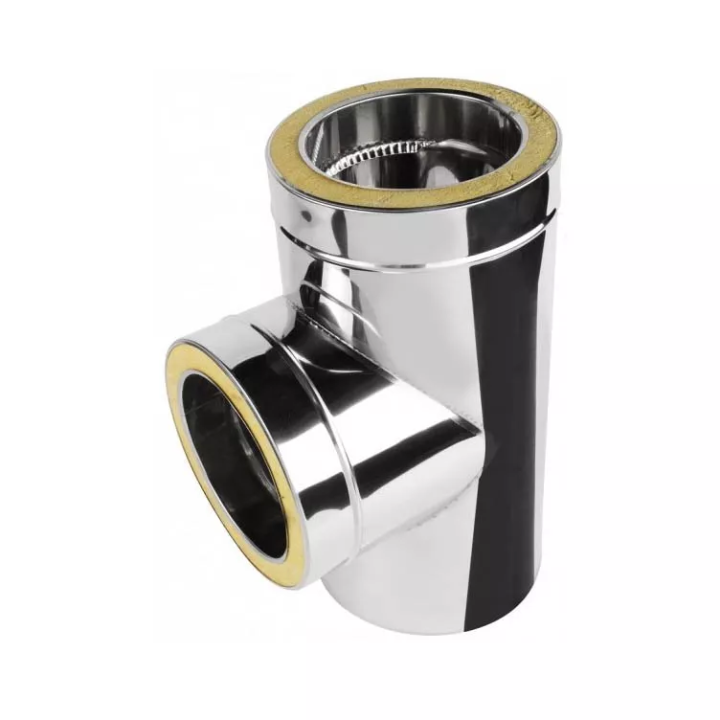

• 90 degree insulated cable
• insulated washout

Insulated heat-resistant chimneys are used for the construction of free-standing chimneys to remove flue gases from wood-fired heating devices. The chimney made in this technology is a stand-alone structure, not requiring the use of conventional ceramic material.

The inner chimney jacket in double-walled is made of acid-resistant chromium-nickel sheets of grade 1.4828 according to DIN 17441 with a thickness of 1.0 [mm], the outer jacket is made of acid-resistant steel 1.4301, thickness 0.5 - 0.6 [mm], the thermal insulation is 70 [mm].
