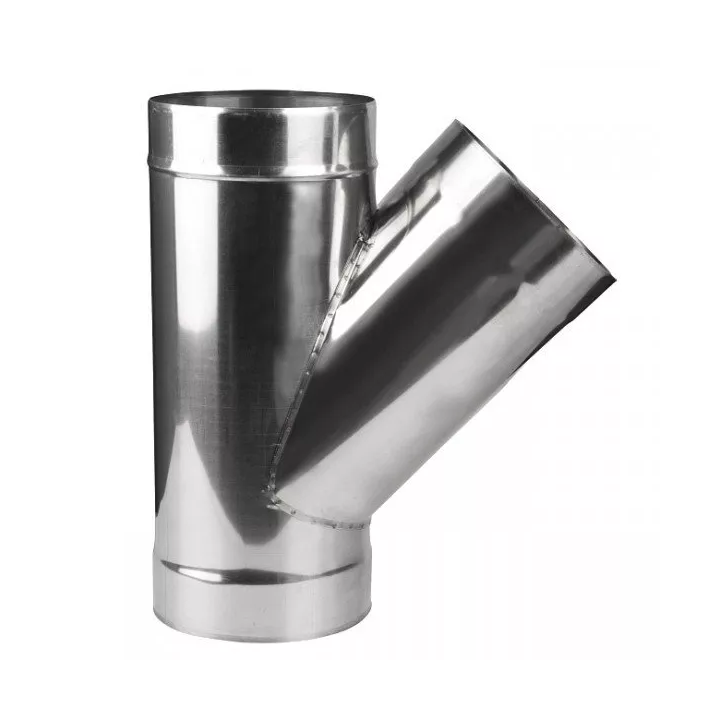

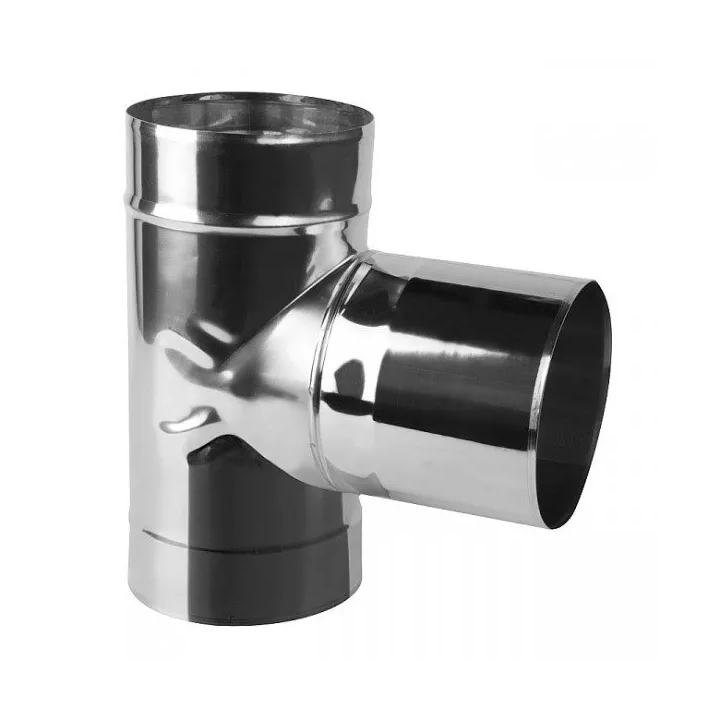

Prodmax - heat-resistant single-wall chimney system - tee

Heat resistant oven for connecting a wood-burning stove with a chimney liner.

Heat-resistant chimney liners are made of heat-resistant chromium-nickel steel sheets, grade 1.4828 according to DIN 17441, thickness 1.0 [mm]. They are mainly used to remove flue gases from wood-fired heating devices operating under negative pressure. Such chimneys are resistant to high temperatures that may arise in such a work environment. It is also possible to make a 1mm thick insert in 1.4404 sheet metal. This is justified when you need to connect a boiler for solid fuels with high efficiency, and thus - exhaust gas at a very low temperature. This sheet is not as heat resistant as grade 1.4828, but it is characterized by much greater resistance to acid in the condensate.

Advantages of heat-resistant insert

• high resistance to acid, mainly sulfuric acid
• resistance to high temperatures (temporarily up to 1250 C)
• much lower resistance to exhaust gas flow than traditional chimneys in masonry due to less surface roughness
• can be used inside buildings in newly built chimneys as well as when renovating old ones.
