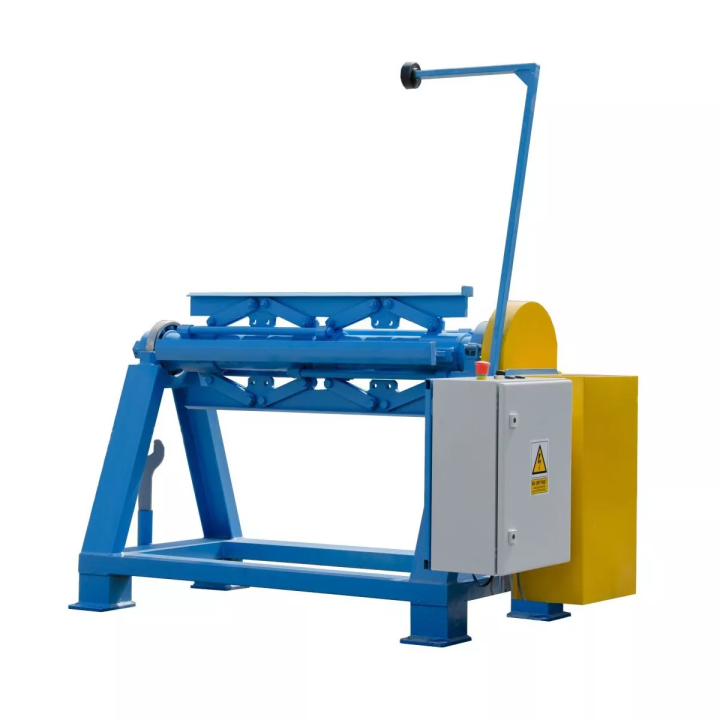

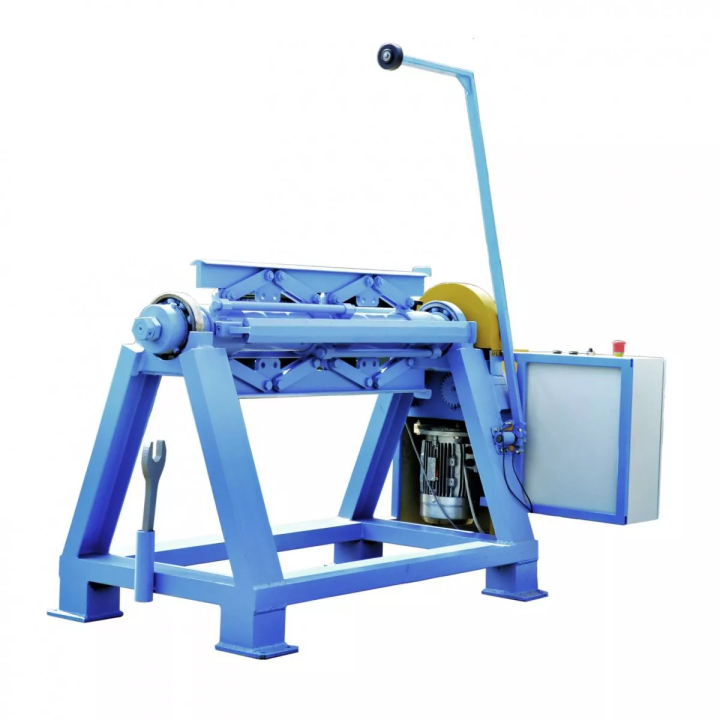

Mazanek - mechanical decoiler for RM 1250 / 5T tapes

The RM 1250 mechanical decoiler is designed for coils of up to five tons. The product is equipped with an adjustable brake limiting the unwinding force, a self-centering shaft supported on both sides on bearings and two nuts connected with expansion arms. The arms are manually extended by means of a four-arm screw, range 360 mm - 640 mm. The base is made of steel profiles.

Technical data

• arm length 1250 mm
• transmission W 86/46
• a maximum load of 5000 kg
• length 2050 mm
• width 1000 mm
• height 1000 mm
• total weight 500 kg
