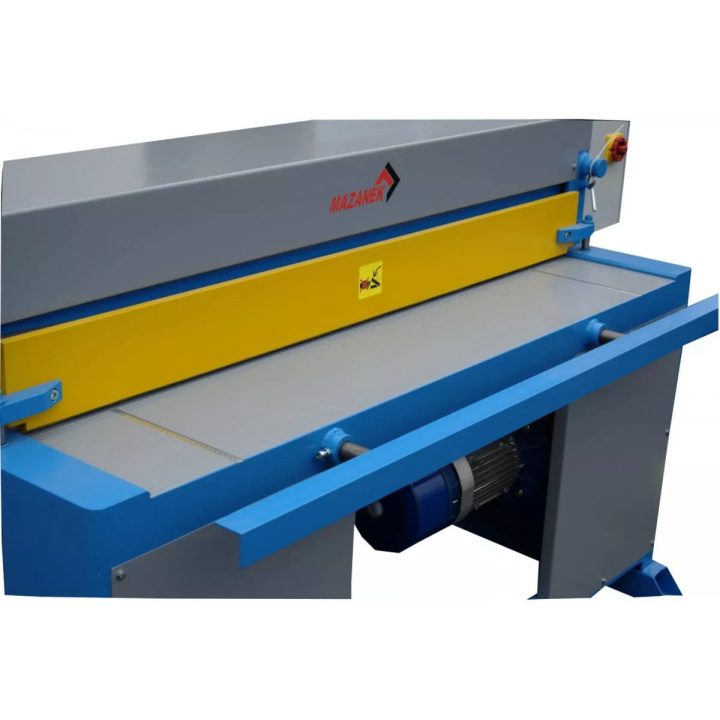

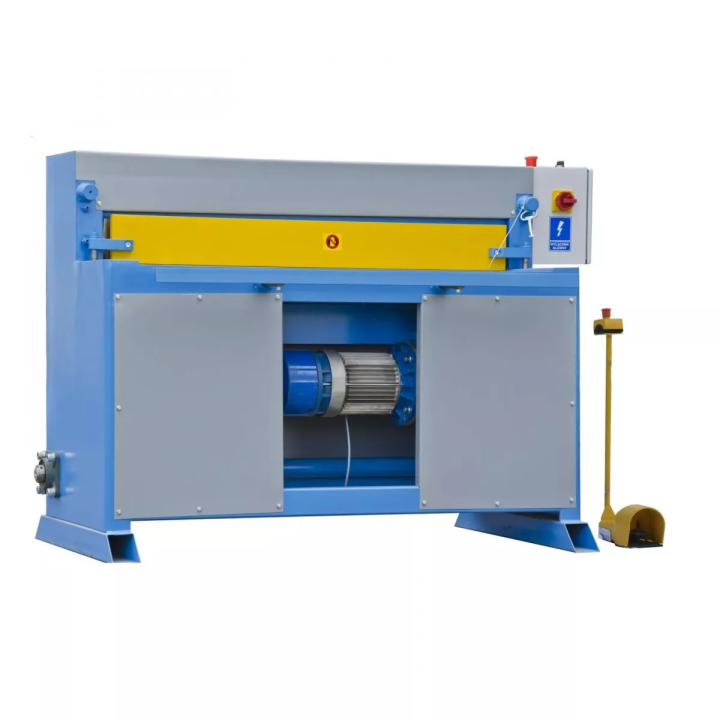

Mazanek - GM 1250 / 1.5 mechanical guillotine

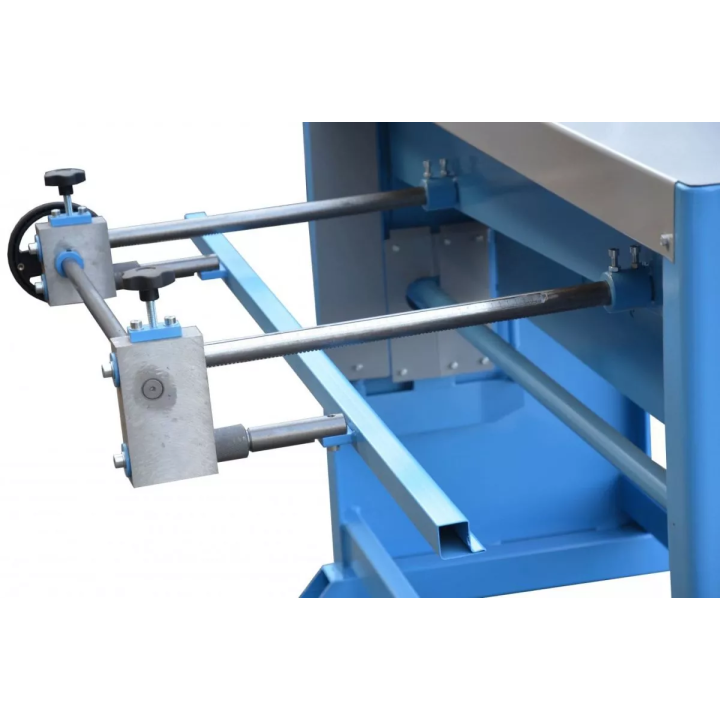

The machine is designed for cutting material such as brass, steel, copper, aluminum in the form of sheets with a maximum thickness of 1.5 mm. The equipment includes a rear cutting length limiter and sheet metal supports, which are mounted at the front of the cutter. The product can be operated by one or two people. Markers are made on the table to facilitate cutting measurement. The machine has a simple and massive structure, thanks to which it ensures easy operation as well as long and trouble-free operation with low power consumption. Switching on and only by hand and foot.

Technical data

• maximum thickness of the cut sheet 1.5 mm Rm <400 MPa
• maximum cutting width 1280 mm
• length 1575 mm
• width 1500 mm
• height 1150 mm
• weight 520 kg
