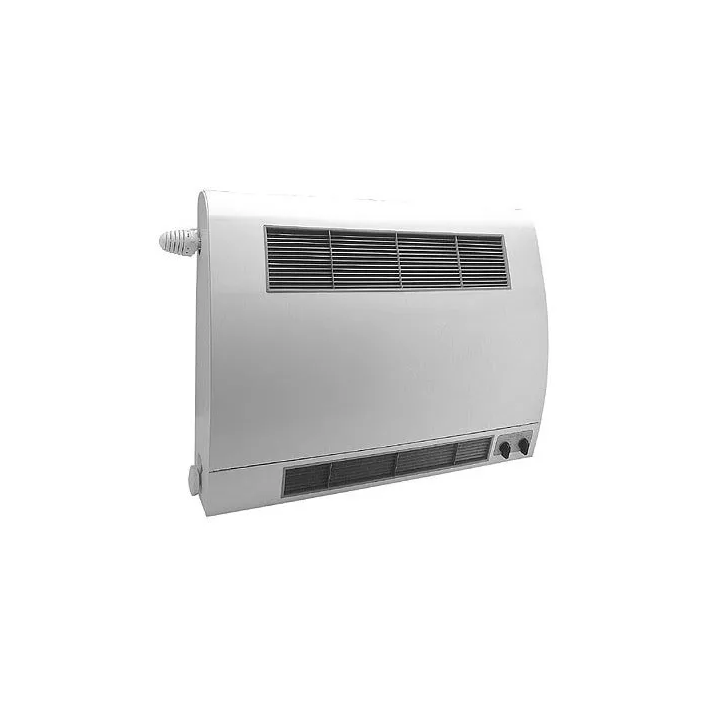

Convector - Neolux III heating and ventilation device

The Neolux III type heating and ventilation apparatus can work in fresh and / or recirculated air. In standard equipment with electric heaters it can be used as an air heater in periods when the water heating system is not used.

properties

• heating with electric heaters
• ventilation with circulating or fresh air through a damper
• cooling via ice water supply
• air filtering
• temperature control
• fan performance control (3 ranges)
• simple assembly and operation
• very quiet work
• aesthetic housing made of sheet steel covered with powder varnish
• for use in conference rooms, offices, apartments, restaurants, computer rooms etc.

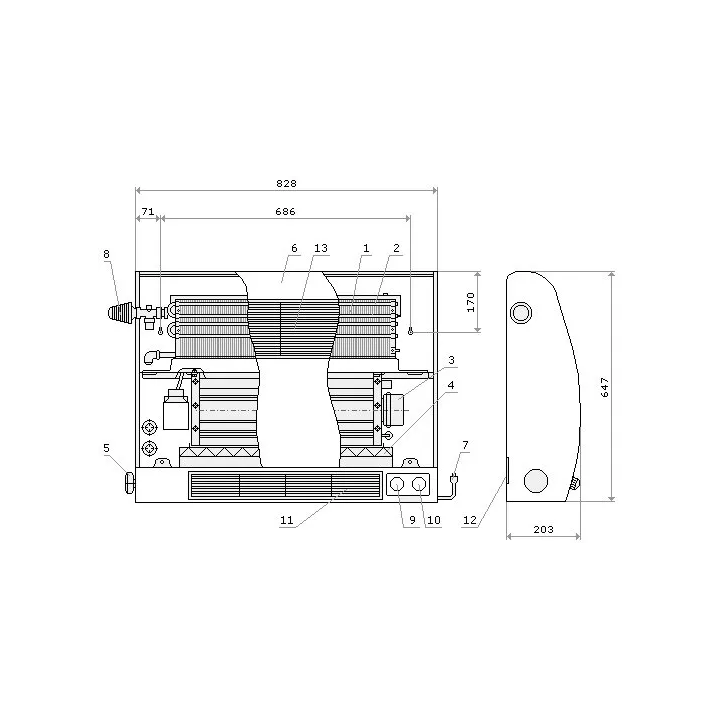

Building

1 - water heater
2 - electric heaters
3 - fan assembly
4 - air filter
5 - throttle control knob
6 - housing
7 - power cord with plug
8 - thermostatic valve
9 - rotation switch in the fan
10 - mode switch
11 - circulating air inlet grille
12 - fresh air inlet - 70x500 [mm] 20 mm from the bottom edge
13 - outlet grille

Control

The expected room temperature can be obtained by:

• two-stage power regulation of electric heaters
• setting the ratio of fresh to recirculated air by adjusting the throttle knob
• regulation of the heating medium supply by means of a thermostatic valve
• fan speed setting
