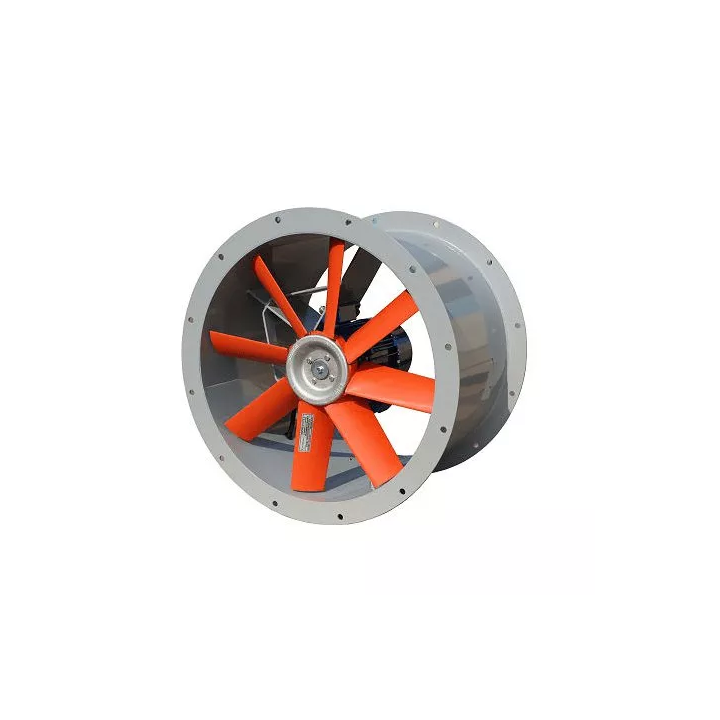

Convector - axial duct fan WOKTS - single phase

Axial duct fan WOKTS single phase single speed.

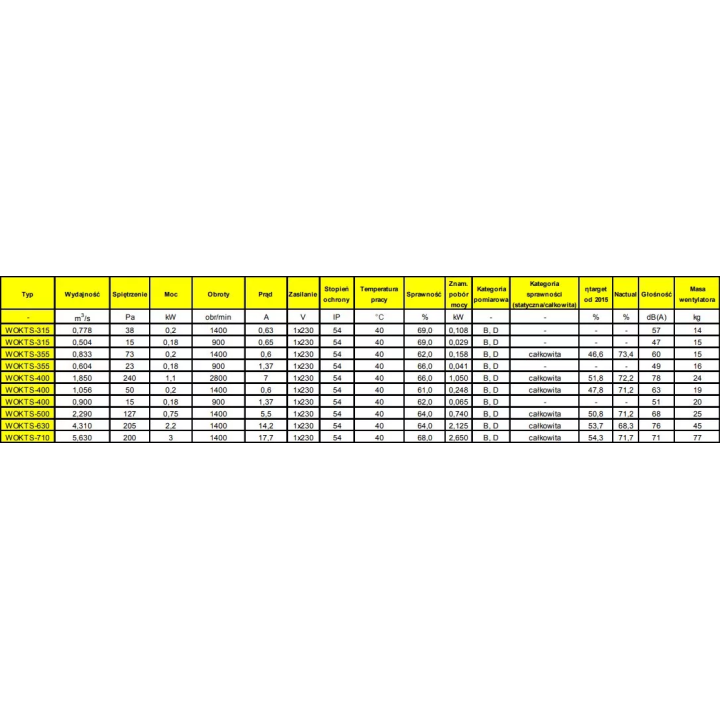

Technical data

• temperature of the pumped medium from -15 C to +40 C
• degree of protection IP 54
• adapted for installation in ventilation ducts by means of rings
• provides exhaust ventilation - removing gas in and vapor in chemically inert and non-explosive
• provides a breath of fresh air
• for use in ventilation, heating, cooling and drying installations

Building

The fan casing is made of acid-resistant or galvanized steel sheet. Available in two versions - long and short. Impellers with profiled blades are made of very durable plastic - PPG (polypropylene reinforced with glass fiber). Direction of fluid flow through the fan: SW - fluid flow from the motor side to the impeller or WS - fluid flow from the impeller side to the motor. The fan in the short version is equipped with an electrical box, while in the long version it has an additional inspection opening.
