The Inventio radiator has a varnish coating. It is made of precision steel. The screen is a steel plate covered with powder paint. The radiator is available with a bottom connection type D50 - 50 mm. Connections: G 1/2 ''. In the production process a laser beam was used - Lasercut technology, ensuring greater precision. Possibility of cooperation with a heater.

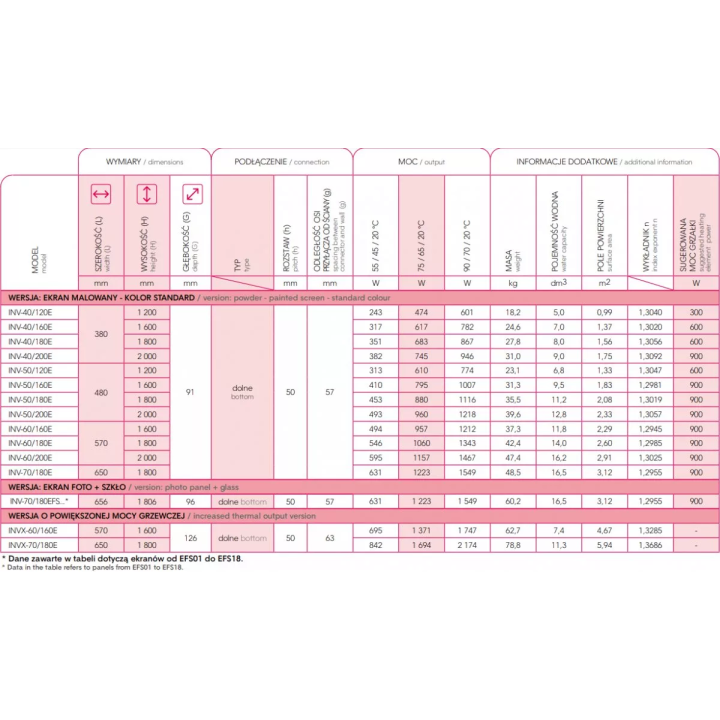

Technical data

• thermal power from 474 to 1694 W for 75/65/20 C
• heat output from 601 to 2174 W for 90/70/20 C
• maximum working temperature 95 C
• maximum working pressure 1 MPa

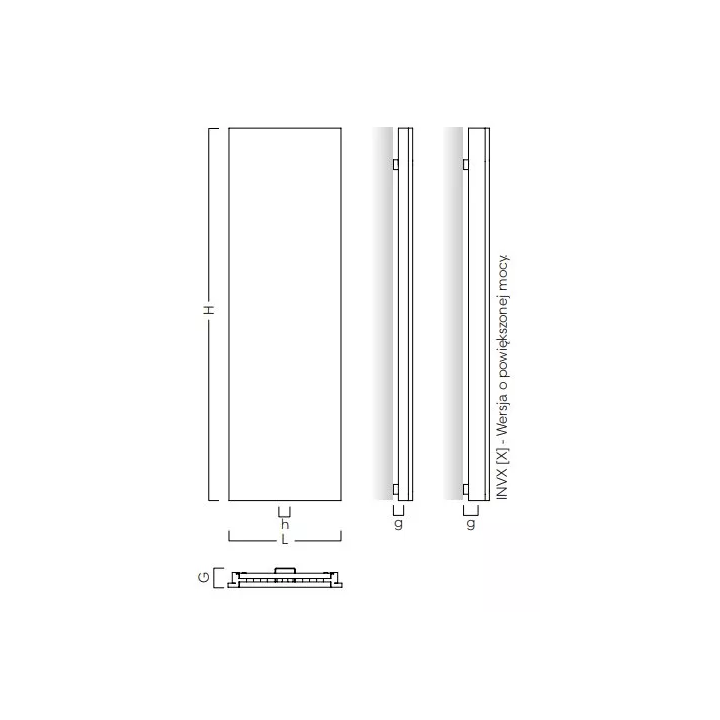

• height from 1200 to 2000 mm
• width from 380 to 650 mm
• depth 91, 96, 126 mm

As a standard, the radiator in white silk with a steel screen in white silk with a bottom connection D50. The set includes a heater, mounting kit, vent, manual, warranty card, packaging. For an additional fee, you can purchase other variants in: photo + glass screen and version with increased heating power.

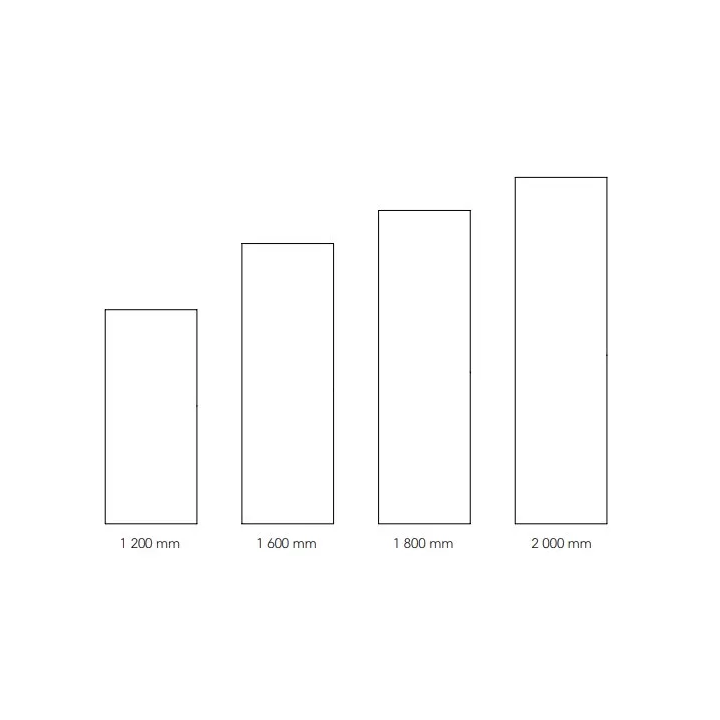

Inventio radiator system at a given height.
