Instal Projekt - Standard 3D bathroom radiator

Standard 3D radiator is a compact radiator designed for small bathrooms. It was covered with a varnish coating. It is made of precision steel. It comes in variants with a bottom connection - 250-450 mm, side connection - 500, 800 mm, and there is also a possibility of cross connection. Connections: G 1/2 ''. Construction with an additional row of extended heating pipes.

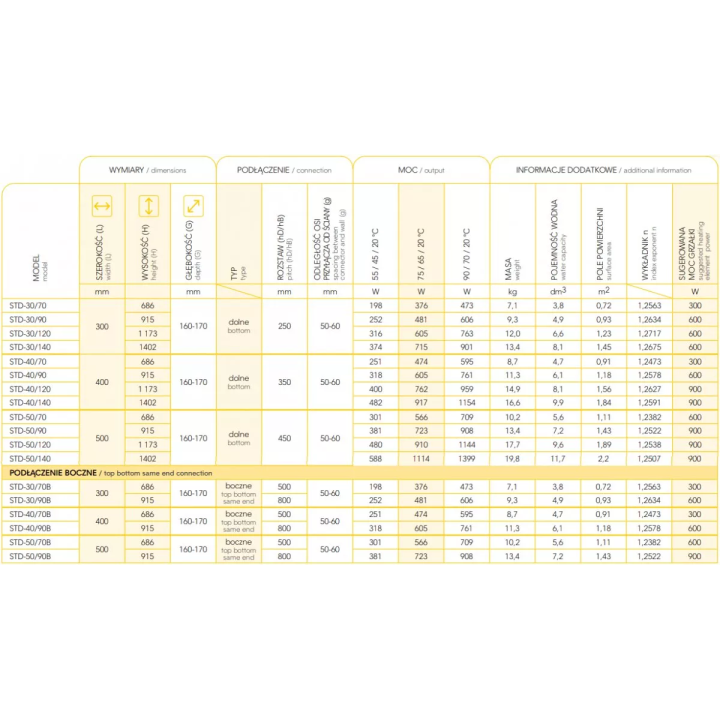

Technical data

• thermal power from 376 to 1114 W for 75/65/20 C
• thermal power from 473 to 1399 W for 90/70/20 C
• maximum working temperature 95 C
• maximum working pressure 1 MPa
• height from 686 to 1402 mm
• width from 300 to 500 mm
• depth from 160 to 170 mm

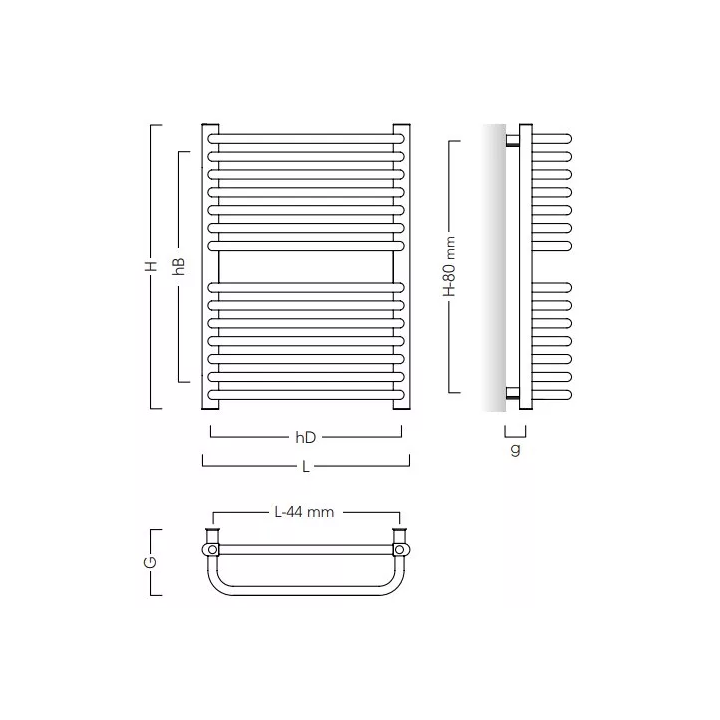

hD - bottom connection spacing
hB - side connection spacing

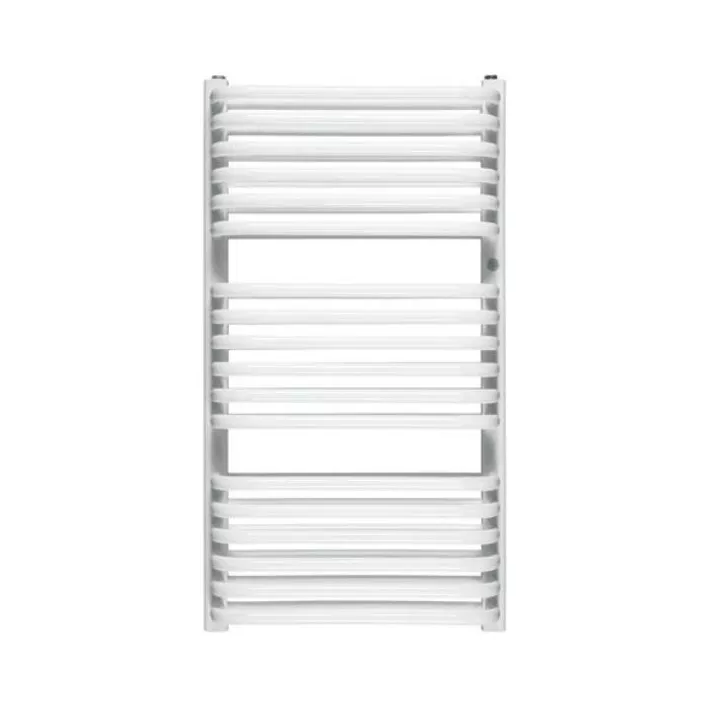

White silk bottom radiator as standard. The set includes a heater, mounting kit, vent, manual, warranty card, packaging.

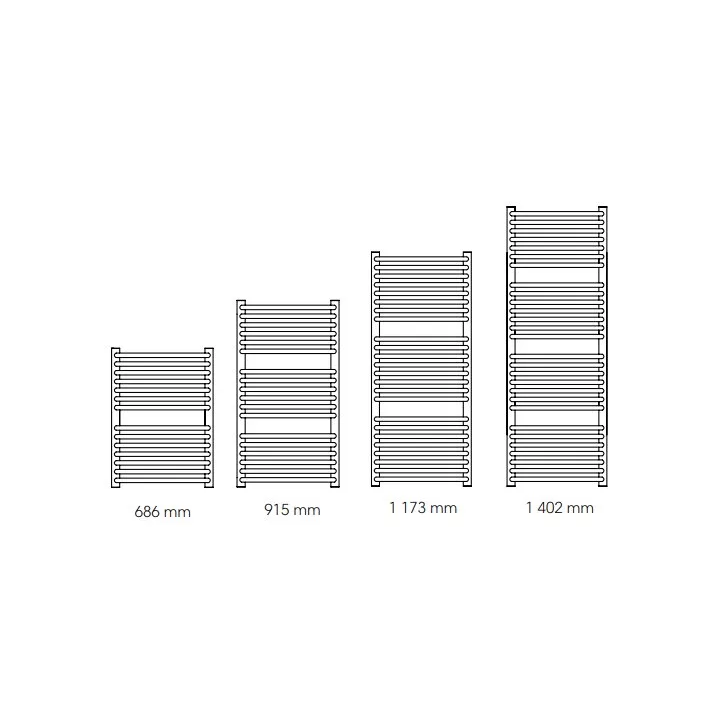

Standard 3D radiator system at a given height.
