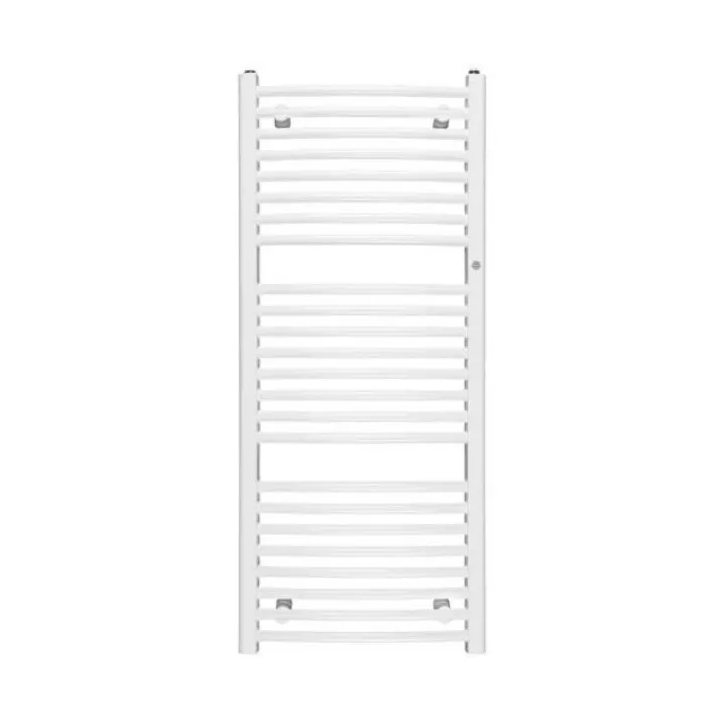

Instal Projekt - Omega R bathroom radiator

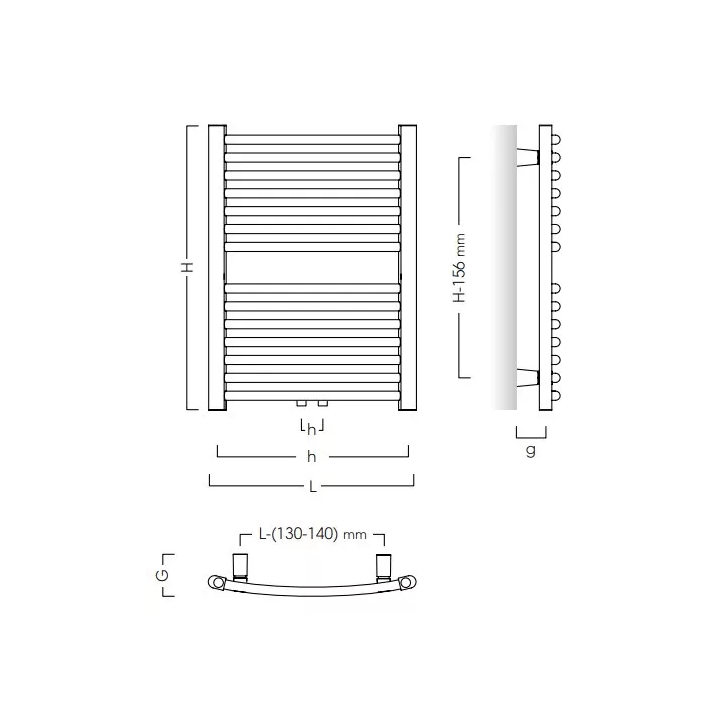

The Omega R radiator is designed for bathrooms. It was covered with a varnish coating. It is made of steel. It is available in variants with bottom connection - 350-750 mm, bottom type D50 - 50 mm, and there is also a possibility of cross connection. Connections: G 1/2 ''. Bent radiator tubes increase functionality and ease of drying. The radiator has a distance adjustment from the wall.

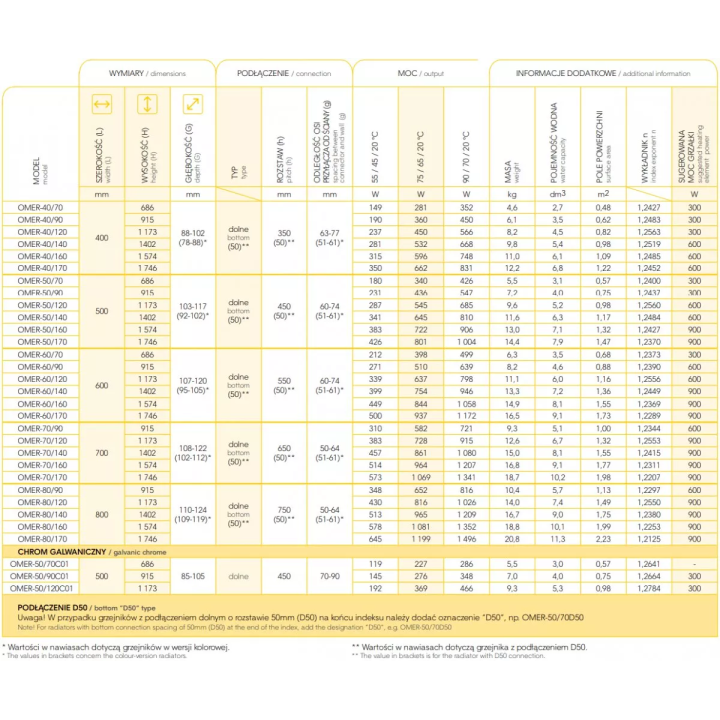

Technical data

• thermal power from 238 to 1199 W for 75/65/20 C
• thermal power from 297 to 1504 W for 90/70/20 C
• maximum working temperature 95 C
• maximum working pressure 1 MPa
• height from 686 to 1746 mm
• width from 400 to 800 mm
• depth from 88 to 124 mm

White silk bottom radiator as standard. The set includes a heater, mounting kit, vent, manual, warranty card, packaging.

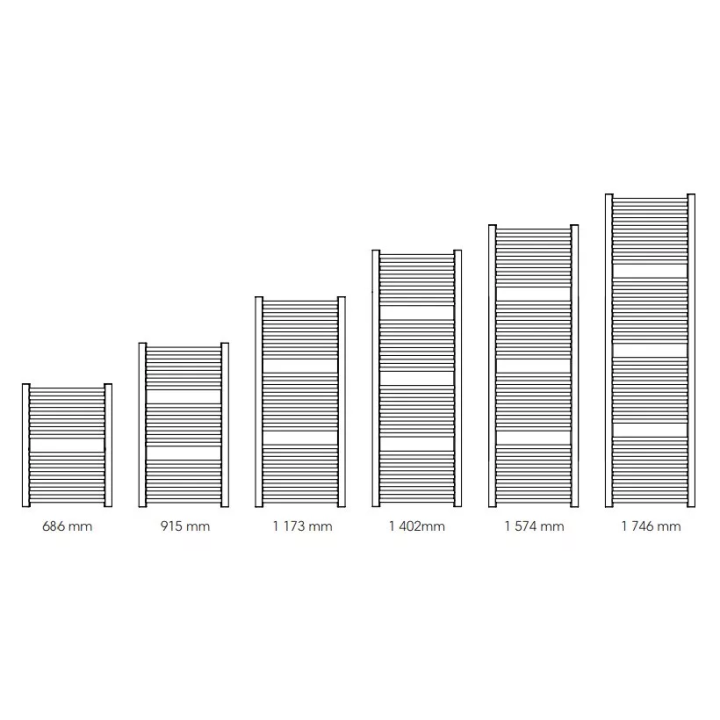

The Omega R radiator system at a given height.
