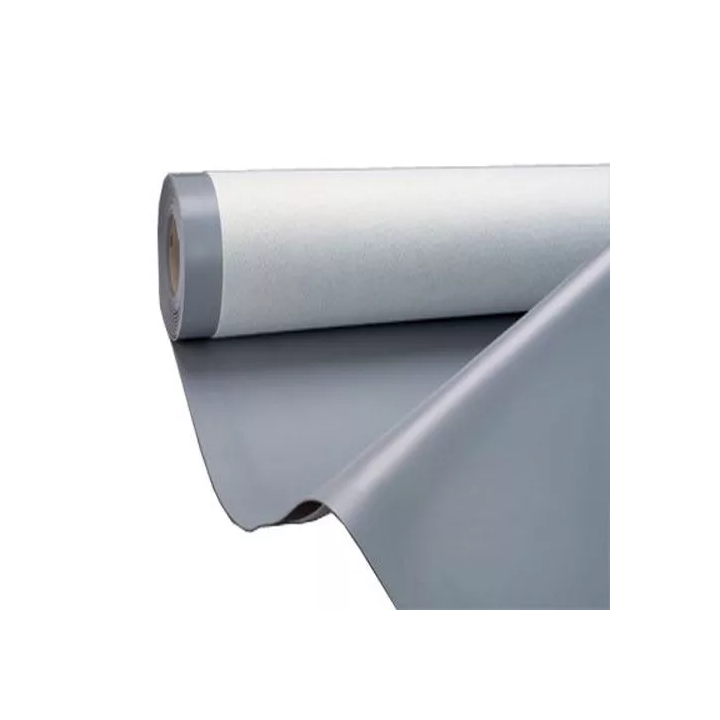

Icopal - Monarplan GF PVC roofing membrane

PVC Monarplan GF 1.5 membrane for single-layer roofing on a fiberglass matrix and finished with polyester fleece on the bottom, which allows the membrane to fully adhere to the substrate using appropriate glue. Used on curved, folded and sloping roofs. It does not require the use of a mechanical fastener. Longitudinal and transverse laps welded with hot air.

Features

• resistant to UV rays
• light and durable
• expected service life of the cover over 30 years
• quick installation

Technical data

• thickness 1.5 mm
• width 2.12 m
• length 15 m
• low temperature flexibility ≤ -25 C
• maximum tensile strength: across 50 mm ≥ 600 N; along 50 mm ≥ 600 N;
• shear resistance at 50 mm ≥ 700 N
• resistance to water flow meets
• resistance to breaking transverse nails ≥ 100 N
• resistance to breaking long nails ≥ 100 N
• reaction to fire Froof t1
