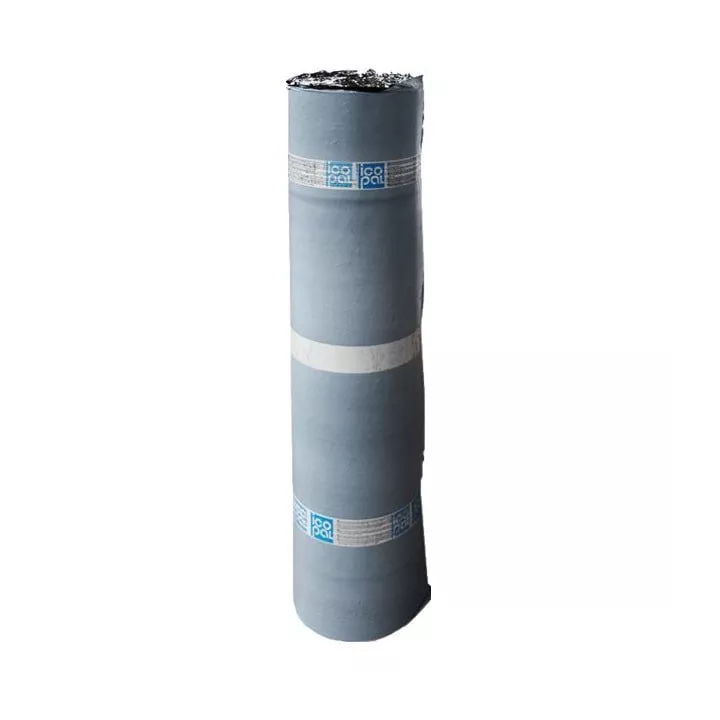

Papa on a basis of glass veil with a double-sided asphalt coating, consisting of SBS modified asphalt with mineral filler and SBS modified asphalt with self-adhesive additives. Along one edge is a removable strip of film approximately 80 mm wide. The self-adhesive underside is covered with a removable siliconized foil. The top side is covered with aluminum foil. The product is used in the implementation of a layer to regulate the penetration of water vapor in buildings - vapor barrier.
Technical data
- length * ≥ 20.0 m (according to EN 1848-1)
- width * ≥ 1.0 m (according to EN 1848-1)
- straightness deviation ≤ 40 mm / 20 m or proportionally for other lengths (according to EN 1848-1)
- thickness 1.8 0.2 mm (according to EN 1849-1)
- watertight at a pressure of 100 kPa (according to EN 1928 method B)
- mechanical properties in tension - maximum tensile force: longitudinal direction 600 100 N / 50 mm; across 400 100 - according to EN 12311-1
- mechanical properties in tension - elongation: longitudinal direction 5 2%; transverse direction 4 2% - according to EN 12311-1
- water vapor transmission Sd (m) = 1750 250 (according to EN 1931)
- durability meets water vapor diffusion resistance after artificial aging
- flexibility at low temperature -25 C / ∅30 mm (according to EN 1109)
- resistance to flowing 110 C (according to EN 1110)
- reaction to fire class E (according to EN 13501-1)
- packaging 15.0 m 2 / 46.5 kg
* other length or width possible, but not lower than declared
Caution
Icopal papers are available mainly in full-pallet quantities. In the case of smaller quantities, an additional fee will be charged for depalletizing PLN 100 net.
