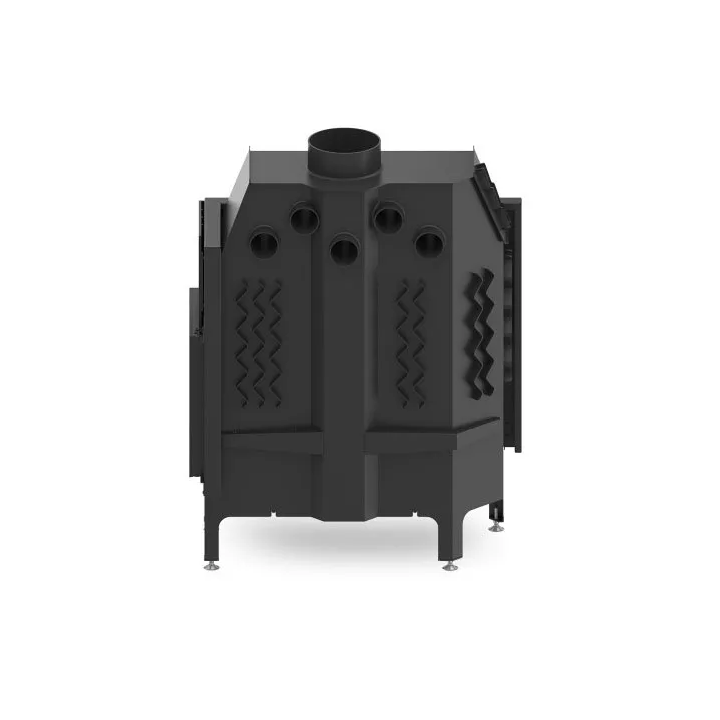

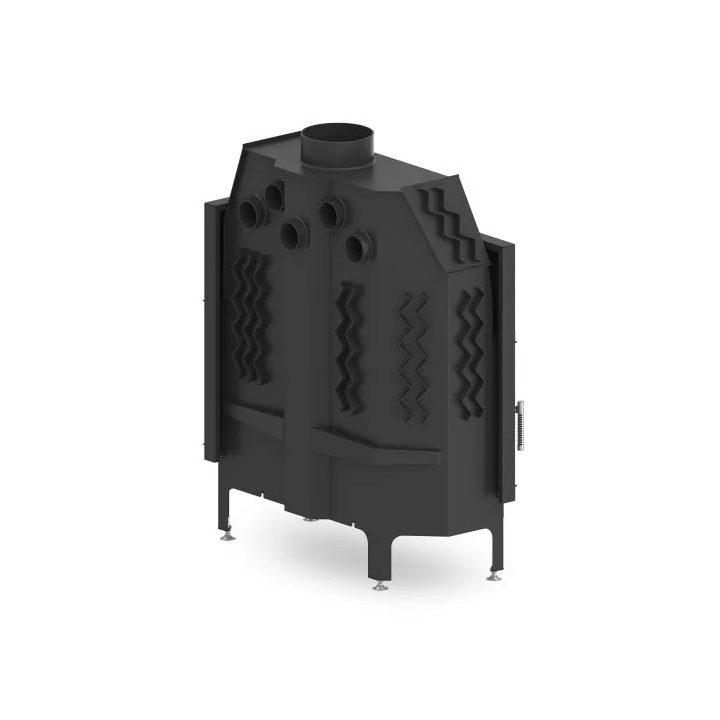

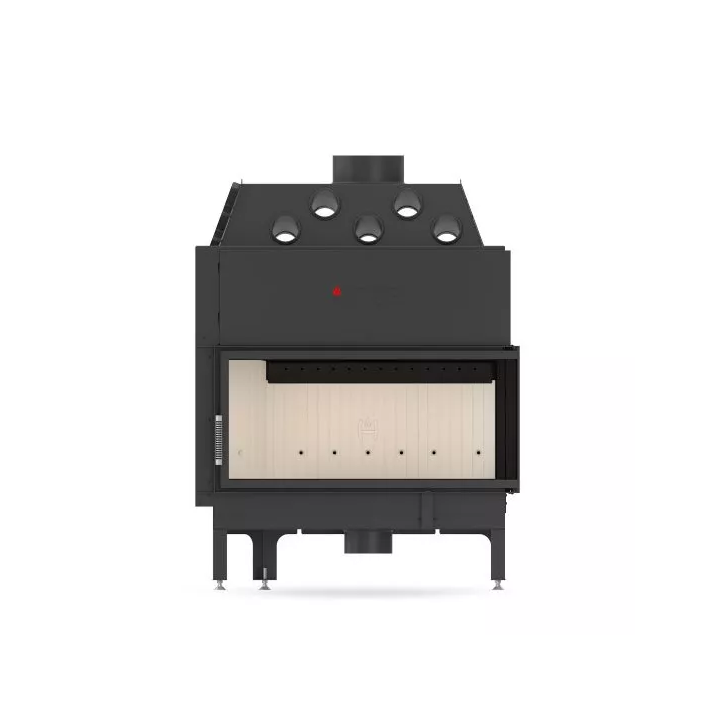

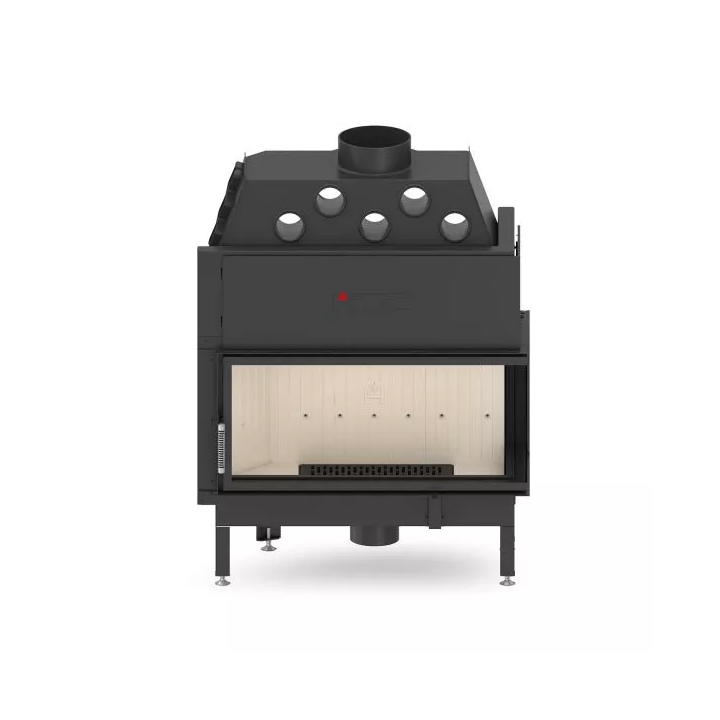

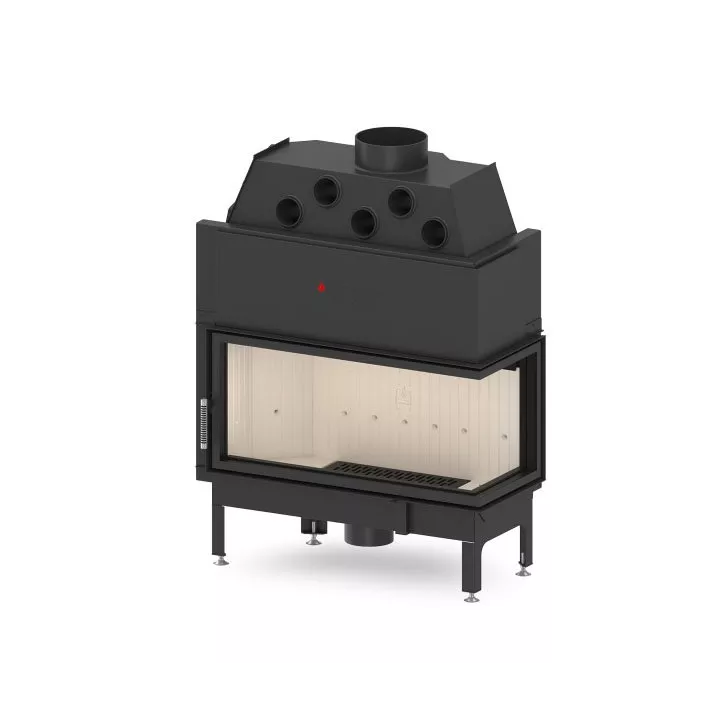

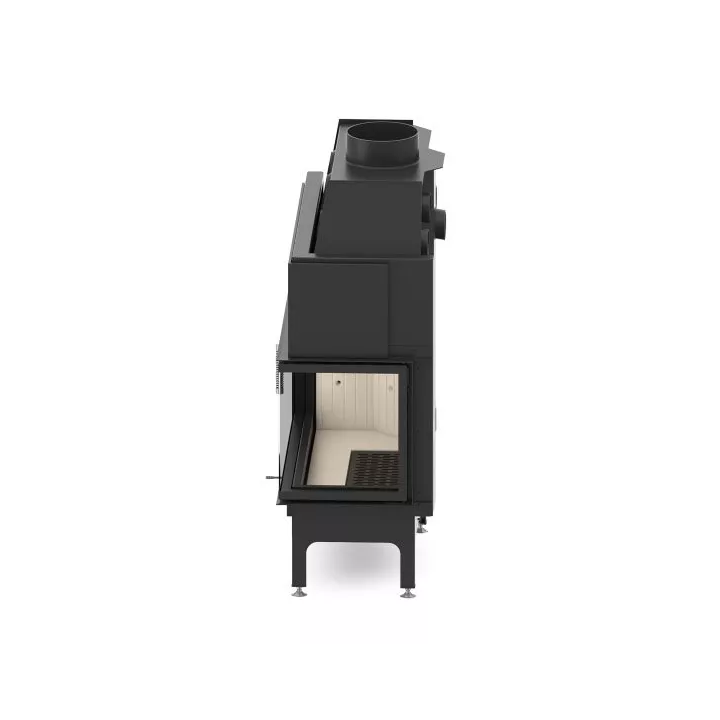

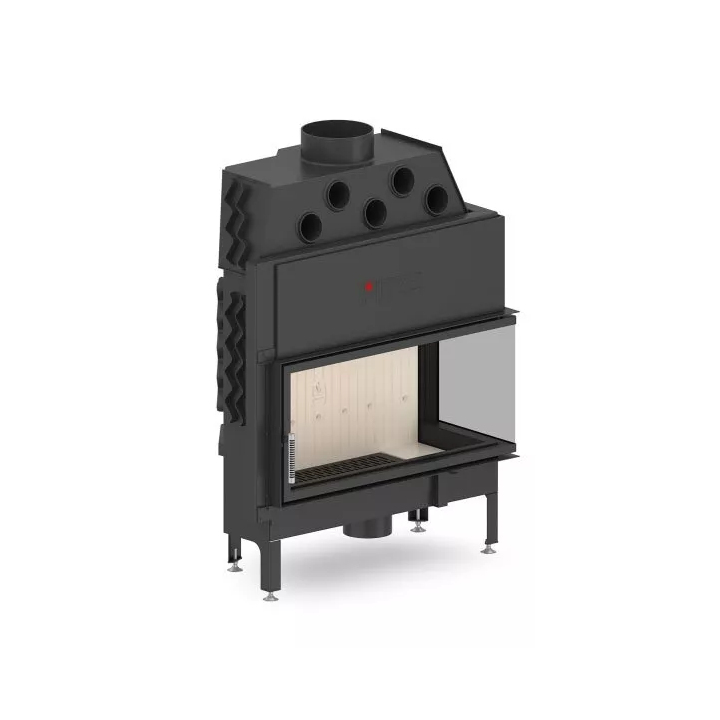

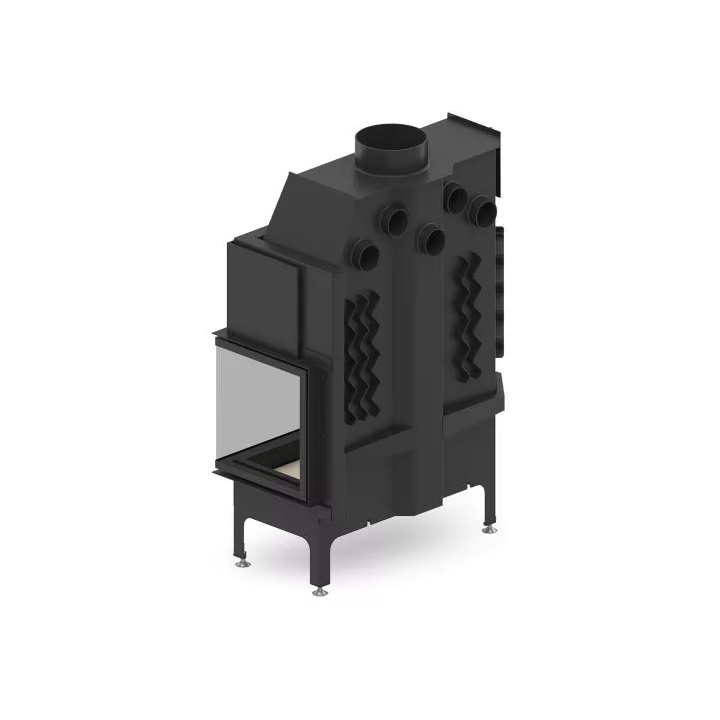

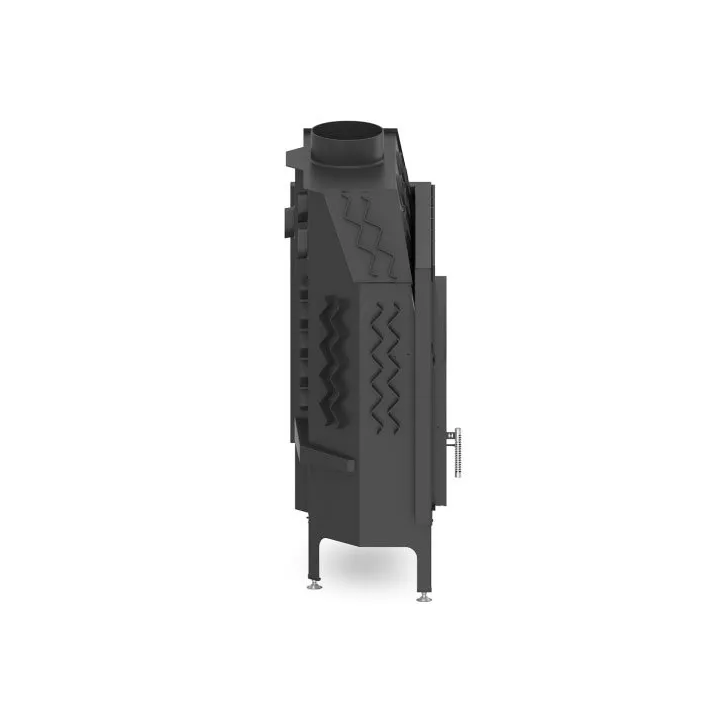

Hitze - air fireplace insert Albero 19 RH

Price: zł12,020.65
Tax included
Specially designed rear part of the body allows supply of secondary air to the upper part of the furnace. Steel door made of a special profile that guarantees rigidity and high temperature resistance. The elements of the insert are produced with the help of modern CNC devices.
Product availability: Dostępny
Share

Fireplaces from the Albero line are equipped with an air inlet with an adjustable throttle and feet allowing for optimal leveling. Inside each fireplace there is a ceramic insert that accumulates heat in the combustion chamber and is resistant to temperatures reaching up to 1000oC. The specialized air curtain is responsible for high purity combustion, and the afterburning system of the resulting flue gas increases the thermal efficiency of the fireplace and reduces carbon dioxide emissions.

The frame of the fireplace door is made of a special extremely thin profile, which ensures adequate rigidity of the fireplace front door and their tightness. In addition, the thin profile produces the "large glass" effect, ie it optically increases the size of the furnace and flames.

HITZE fireplaces have all the necessary certificates issued by the State Institute of Power Engineering, confirming their highest quality, safety of use and technical parameters.

  • The contribution jacket is made of 3 mm thick boiler steel grade P265GH according to EN 10028-2
  • The elements of the insert are manufactured with the help of modern CNC devices (Laser 2D, 3D Laser, Press brakes).
  • Insert welded on the welding robot by the MAG method, guaranteed high quality and aesthetics of the welds.
  • Steel door made of a special profile that guarantees rigidity and high temperature resistance.
  • Heat-resistant ceramic glass with an operating temperature up to 800 C.
  • The steel base of the insert is equipped with a cold outdoor air intake damper, standard.
  • The insert is equipped with an air curtain that guarantees that the clean glass effect is largely maintained.
  • The specially designed rear part of the body enables the supply of secondary air to the upper part of the furnace. It allows you to increase the efficiency of the device by burning combustion gases.
  • The price applies to the version with the Standard glass and without the cover. It is possible to order versions with bent Decor and Combined glass as well as with a cover: M01 (cover 4/4) and M02 (cover 3/4).

hitze fireplace insert Albero11 KW

  • Brand
  • In stock
    1000 Items
  • MPN
    30169

  • weight
    202 kg
  • material
    stal kotłowa 3mm
  • Outlet diameter
    220 mm
  • fuel
    drewno drzew liściastych
    węgiel
    węgiel brunatny
  • nominal power
    19 kW
  • efficiency
    81,6 %
  • flue gas temperature
    314 ˚C
  • maximum log length
    700 cm
  • dust emissions
    0,029 g/m³
  • operating range of heating
    8 - 19 kW
  • CO
    0,096 g/m³
  • the dimensions of the glass
    900 x 415 x 375 mm
  • dimensions contribution
    834 x 310 mm

hitze_albero_19_r_h_karta_techni

Hitze Albero 19 R.H - karta techniczna

Download (626.16KB)
