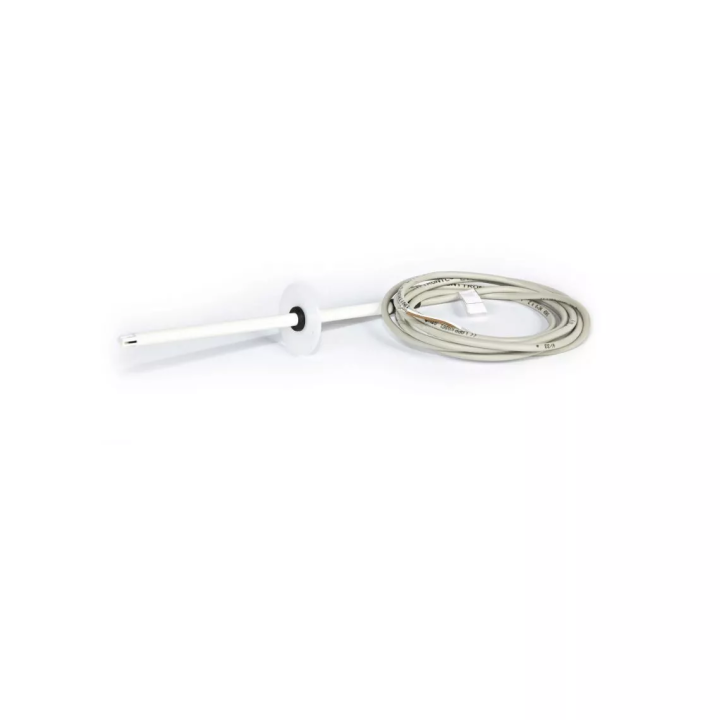

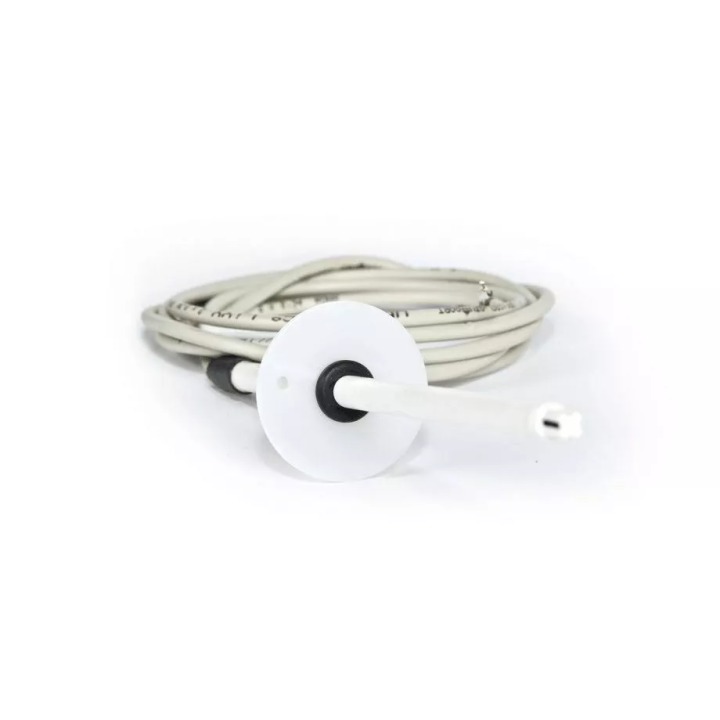

Harmann - automation - channel temperature sensor TJK10K

The duct temperature sensor is equipped with an NTCK10 thermistor. The measuring element is built into a special tube made of plastic. Works with electronic regulators of air heaters in ventilation, air conditioning and heating systems.

Technical data

• excellent stability of temperature characteristics
• degree of protection IP20
• cable length 1.5 m
• tube length 200 mm
• diameter 7.5 mm
• 10 kΩ resistance at 25 C
• dedicated for EHC 1, EHC 15, EHC 15.P, EHC 30, EHC 30P, HCD-INT, HCD-EXT, HCD-INT PTC / PS and TPE, TPT controllers
• possibility of adjusting the sensor mounting depth in the channel depending on the needs thanks to the movable mounting flange
• temperature measuring range from -30 C to +105 C, accuracy 1 C
