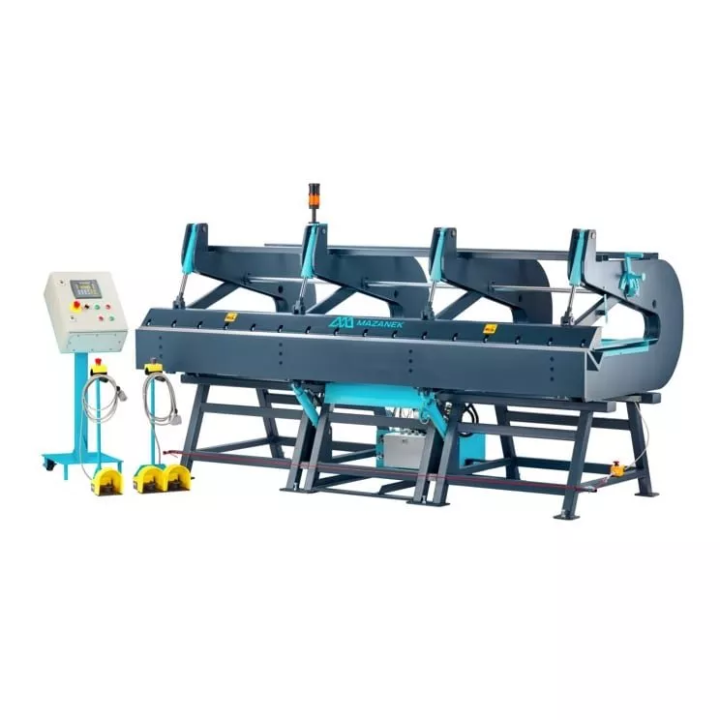

The ZGH - 6000 bending machine is intended for the production of bent sections from sheets or strips not exceeding 1.5 mm in thickness (Rm <400 Mpa).
Dostępny
Share

ark ZGH - 6000 is intended for the production of sections in bent sheets or strips not exceeding 1.5 mm in thickness (Rm <400 Mpa). The ZGH - 6000 bending machine uses a hydraulic power supply equipped with a PV6V3 - 30 / 25R8MC / 15A1 vane pump and a 3 kW electric motor. Three hydraulic cylinders (7) driving the bending beam (3) have the symbol CJ2F - 16 - 40/22/200 Dz, CJ2F - 16 - 40/22/160 Dz. Working medium - mineral oil. The ZGH - 6000 bending machine has an electrical installation made by an electrician with SEP qualifications. In accordance with health and safety regulations at the workplace, the machine should be zeroed.

  • Brand
  • In stock
    1000 Items
  • MPN
    13904

  • weight
    2300/3355 kg
  • width
    950 mm
  • length
    6100 mm
  • height
    1500 mm
  • maximum bending angle
    130 °
  • Maximum thickness of the bent sheet
    1,5 mm
  • maximum opening
    150 mm
  • pressure
    10 MPa
  • depth
    650/1200 mm
