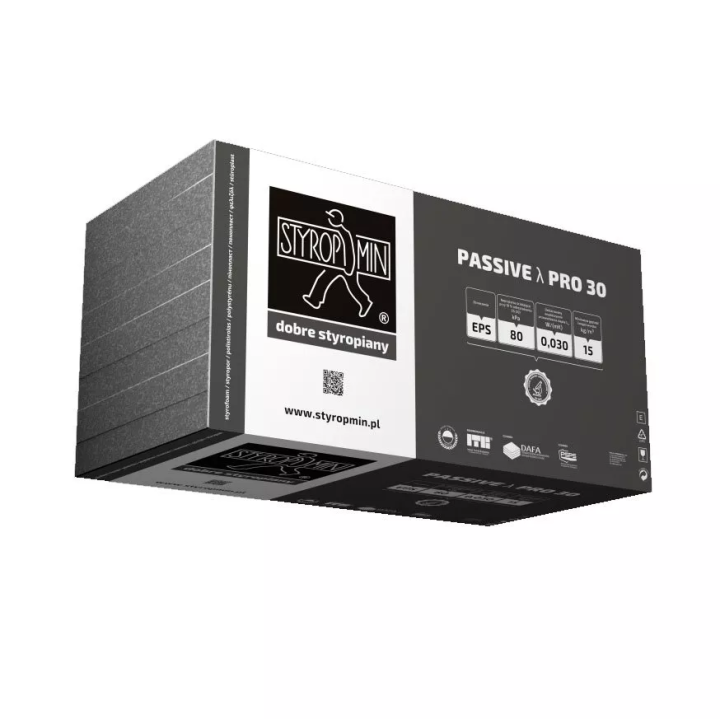

Styropmin - Passive λ Pro 30 polystyrene board

The panels are designed for thermal insulation of vertical and horizontal partitions in passive and energy-saving houses. For insulation of: external walls in seamless BSO insulation systems (light-wet method), external walls in the light-dry method, masonry three-layer walls, skeletal partition walls, subflooring on joists, under service load up to 2.4 ton / m2 , flat roof with any layer of waterproofing, flat roof with flat roofs in full, flat roofs with ventilation, roof with rafters.

Technical data

• board dimensions: 1000x500 mm,
• board thickness: from 20 to 500 mm, in 10 mm increments,
• standard flat edges,
• on request, milled edges from gr. 50 mm for an additional 10% / m3,
• declared heat conduction coefficient at 10oC λD: 0.030 W / (m K),
• the best result of the thermal conductivity coefficient, obtained in the Styropmin laboratory as part of the Factory Production Control (at an average temperature of 10oC, in dry conditions, on samples with a thickness of 50 mm. λmin: 0.027 W / (m K),
• payload: up to 24 kN / m2,
• flexural strength:> 125 kPa,
• tensile strength:> 100 kPa,
• reaction to fire: Euroclass E,
• documents admitting to trading in the EU: Declaration of Conformity No. 03/12 / EC,
• marking in accordance with PN-EN 13163: 2009:
• EPS-EN 13163-T1-L1-W1-S1-P3-BS125-CS (10) 80-DS (N) 2-DS (70, -) 2-DLT (1) 5-TR100.

Due to frequent price movements, please confirm the price before buying.
