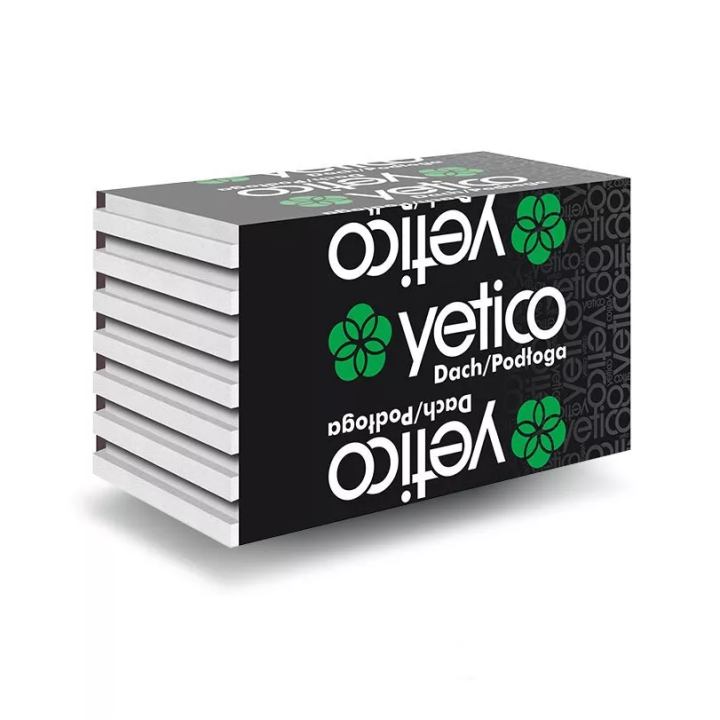

Yetico - EPS 200 polystyrene board

Yetico - EPS 200 polystyrene board

Yetico
zł354.24
Tax included
Application: thermal insulation of floors and roofs with usable loads up to 6.0 t / m², thermal insulation of industrial floors, thermal insulation of garage halls, thermal insulation of car driveways, thermal insulation of flat roofs, thermal insulation of external and internal ceilings, thermal insulation of balconies and terraces , thermal insulation of floors in the floor heating system.
Dostępny
Share

Application

  • thermal insulation of floor and roof with payloads up to 6.0 t / m
  • thermal insulation of industrial floors
  • thermal insulation of garage halls
  • thermal insulation driveway in automotive
  • thermal insulation of flat roofs
  • thermal insulation of ceiling in external and internal
  • thermal insulation balcony in and terrace in
  • thermal insulation of floor in a floor heating system

attention

The standard overall dimensions are 1000 x 500 x thickness [mm]. The range of manufactured thicknesses is 10-200 mm with 10 mm increments. Plate finish: smooth or milled overlap edges. Dimensions and edge finish should be given in the comments to the order.

EPS 200 polystyrene boards cannot be used in direct contact with substances that have a destructive effect on polystyrene, e.g. organic solvents such as acetone, benzene, turpentine, gasoline.

Due to frequent price movements, for reasons beyond our control, please confirm the price when purchasing.

  • Brand
  • In stock
    1000 Items
  • MPN
    20835

  • width
    500 mm
  • fire classification - reaction to fire
    E
  • thermal conductivity λ
    0,034 W/mK
  • length
    1000 mm
  • compressive stress at 10% strain relative
    ≥ 200 kPa
  • thickness range
    10 - 200 mm
  • thickness (dimensional tolerance class)
    ± 2 mm
  • length (dimensional tolerance class)
    ± 6 mm
  • width (dimensional tolerance class)
    ± 3 mm
  • squareness (dimensional tolerance class)
    ± 5/1000 mm/mm
  • flatness (dimensional tolerance class)
    ± 10 mm
  • flexural strength
    ≥ 250 kPa
  • dimensional stability under constant normal laboratory conditions DS(N)5
    ± 0,5 %
  • Dimensional stability under specified temperature and humidity DS(70,-)2
    <= 2 %
  • deformation under specified compressive load and temperature
    <= 5 %
  • depth of the cutter
    15 mm

karta_tech_eps_200_icmarket.pdf

Yetico EPS 200 Karta Techniczna

Download (197.85KB)

yetico_deklaracja_eps_200_icmark

Yetico EPS 200 Deklaracja Zgodności

Download (500.61KB)
