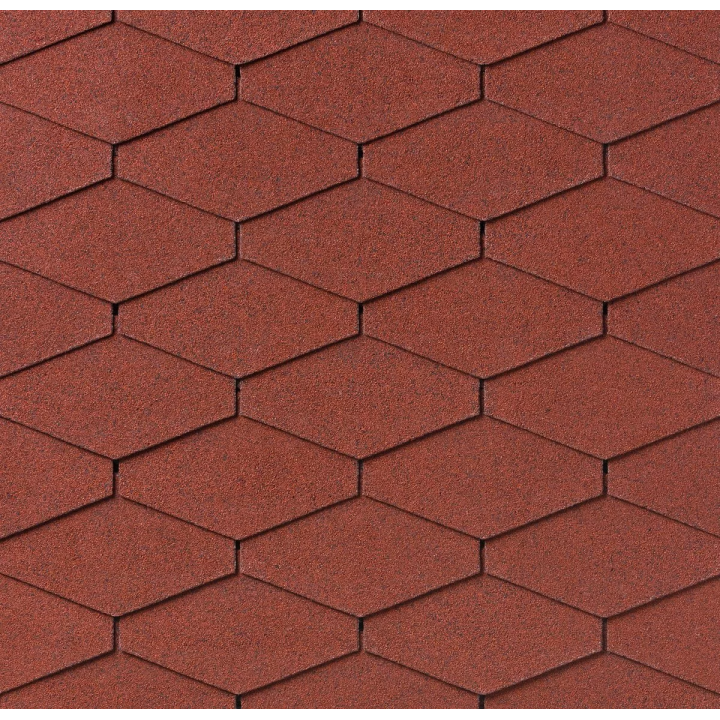

Iko - Diamantshield self-vulcanizing shingles

Diamantshield is a self-adhesive shingle designed for covering roofs in sloping different shapes in individual, multi-family and industrial buildings. DiamantShield is especially recommended for installation in windy areas and on vertical planes up to 90 degrees. The use of fiberglass and special bitumen ensures durability of the shingle. Fully safe against water and snow penetration. More economical on low drops (below 15 degrees). Shingles are glued along the entire length of the plates.

Technical data

• adhesion of granules (EN 12039): max 1.2 g,
• longitudinal stress (EN 12311-1): 1000 N / 50 mm,
• head tension (EN 12311-1): 700 N / 50 mm,
• longitudinal stretch (EN 12311-1): 3.5%,
• extensibility (EN 12311-1): 3.5%,
• resistance to tearing by nails (EN 12310-1): 160 N,
• fire resistance: DIN 4102/7,
• the product has the required documents for use.
