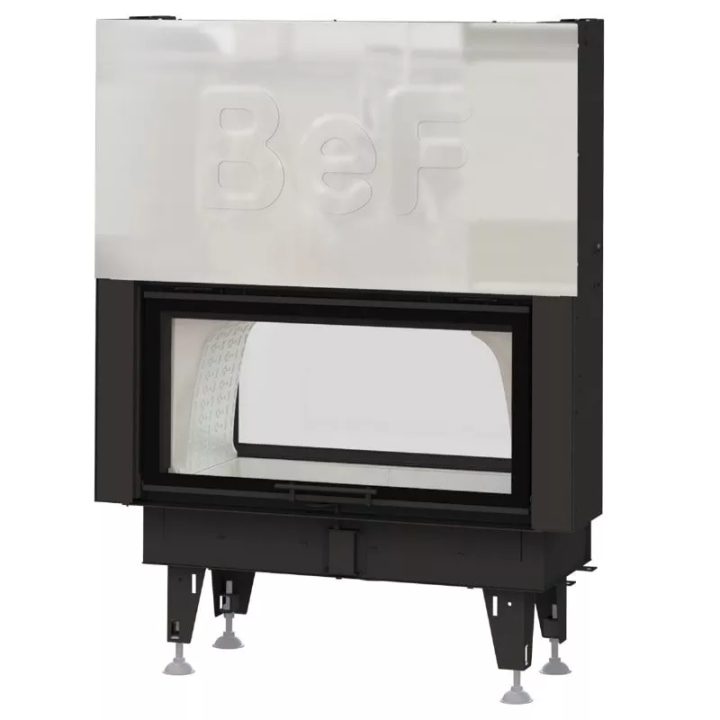

BeF - BeF Twin V 10 air fireplace insert

Price: zł15,115.47
Tax included
Fireplace inserts for space with wide-angle glazing, one with sliding doors and the other opening to the side. Smoking regulation on both sides. Grate hearth lined with carcon. A new withdrawable system that ensures maximum tightness and ease of use (the doors in this system slide parallel to the frame, while in the last phase they are pressed evenly around the entire perimeter of the frame, ensuring maximum tightness). Deeper hearth without a barrier. Outdoor air intake with integrated manifold suitable for connecting automatic adjustment. Tilting door opening system for cleaning the glass. Four-sided 90-degree mounting frame can be ordered
Product availability: Dostępny
Share

  • Fireplace inserts for spaces with wide-angle glazing, one with sliding doors and the other opening to the side,
  • Smoking regulation on both sides
  • Grate hearth lined with carcon
  • A new withdrawable system that ensures maximum tightness and ease of use (the doors in this system slide parallel to the frame, while in the last phase they are pressed evenly along the entire perimeter of the frame, thus ensuring maximum tightness).
  • Deeper hearth without a barrier
  • Outdoor air intake with integrated manifold suitable for connecting automatic adjustment
  • Tilting door opening system for cleaning the glass
  • Four-sided 90-degree mounting frame can be ordered

  • Brand
  • In stock
    1000 Items
  • MPN
    30346

  • weight
    307 kg
  • Outlet diameter
    200 mm
  • efficiency
    83 %
  • flue gas temperature
    242 ˚C
  • Rated thermal power
    14 kW
  • length logs
    50 cm

bef_twin_v_10_wrl_3d.zip

BeF Twin V 10 - WRL 3D

Download (2.35MB)

bef_v_10_ii_karta_techniczna.pdf

BeF Twin V 10 II - Karta techniczna

Download (1.2MB)

bef_twin_v_10_karta_techniczna.p

BeF Twin V 10 - karta techniczna

Download (296.17KB)
