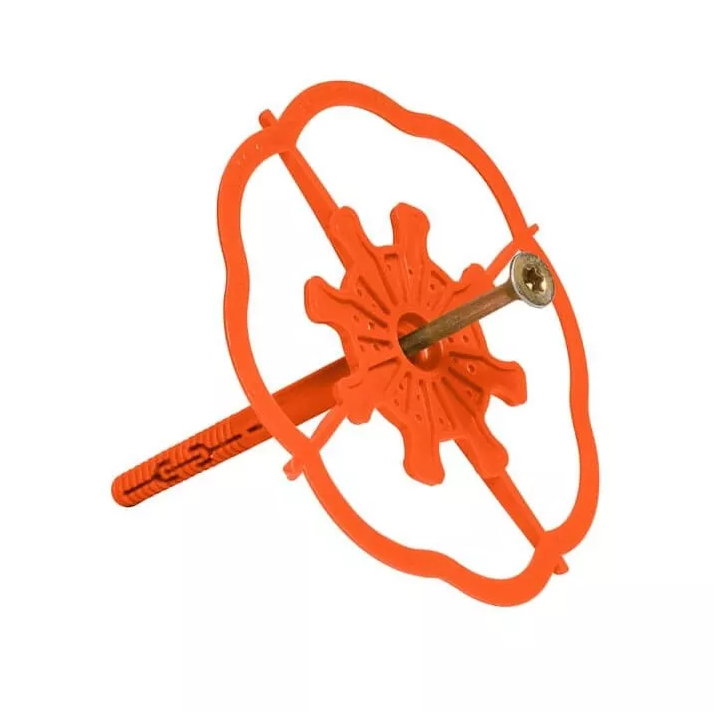

Baumit - StarTrack Orange mounting anchor

An assembly anchor with a screw-in steel pin, used for fixing the system to thermal insulation based on thermal insulation foamed polystyrene boards. The spindle length is 88 mm.

Features

• easy and safe processing
• on walls with old plaster
• directly onto the wall substrate

Application

• installation of thermal insulation to walls made of cellular concrete, full brick or ceramic block
• the product is made of very resistant polyamide, it will successfully keep warm for many years

Technical data

• shank diameter = drill diameter 8 mm
• spindle length 88 mm
• Torx T30 screwdriver
• minimum drill hole depth 95 mm
• use categories A, B, C, E
• scope of application concrete, solid brick, hollow brick, hollow brick, cellular concrete
• minimum anchoring depth: ≥ 40 mm; ≥ 65 mm in cellular concrete
• on old plaster, maximum 40 mm thick
• material consumption approx. 6 pieces / m
• package of 300 pieces
