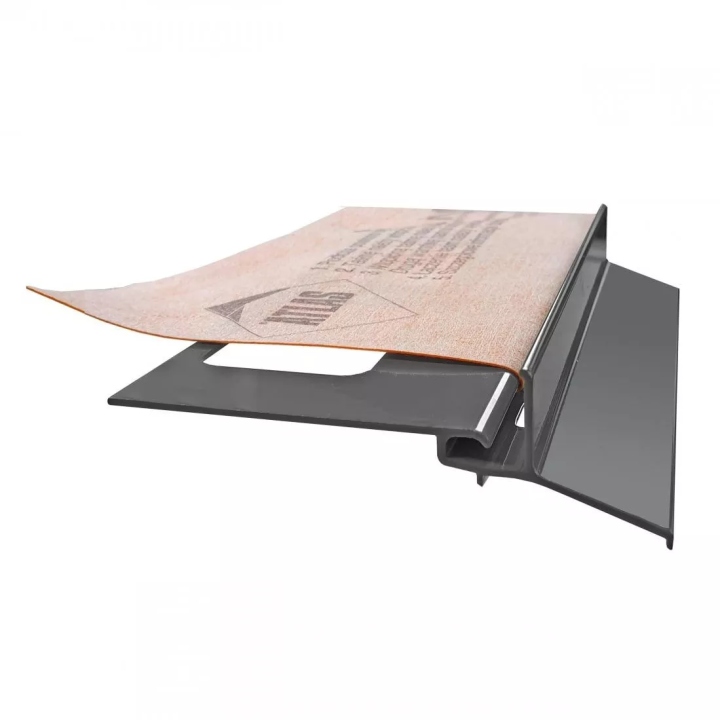

Atlas - profile with integrated Hydroband 3G Atlas 102 tape

Atlas 102 is an aluminum eaves profile for terraces and balconies, resistant to strongly alkaline environments, mortars and insulating coatings.

Features

• innovative eaves sealing system
• element of the balcony and terrace insulation system
• protected against corrosion - the aluminum profile is covered with two types of protective coatings
• it has a profiled drip, draining water beyond the wall surface
• long-term durability - resistant to weather conditions, corrosion, aggressive effects of cement mortars, cement insulating coatings and the environment, including very high pH and UV radiation
• easy and tight installation of the Atlas Hydroband 3G insulating tape (included) and its connection to the tile insulation
• a shaped ridge and an attached expansion cord, which allows for the correct operation of the ceramic cladding
• outside

Application

• cement screeds and other substrates of adequate stiffness or load-bearing capacity
• protects the edges of the tiles against mechanical damage
• protects the surfaces below the eaves against dampness caused by water flowing down the roof
• ensures the maintenance of tightness in the eaves zones
• provides effective drainage of rainwater outside the eaves - from the balcony or terrace area

Technical data

• weight of the main profiles of the Atlas 102 system: 310 g / rm
• anti-corrosion protection: primer galvanic chrome plating 600 mg / m ² ; Polyester protective coating approx. 70 μm
• profile length 200 cm
• Atlas Hydroband 3G insulation tape length 220 cm
• length of the expansion cord 200 cm

The offer includes three standard colors: gray (RAL 7037), brown (RAL 8019), graphite (RAL 7024) - please provide your choice in the comment to the order. If you are interested in other colors from the RAL palette, please send your inquiry.
