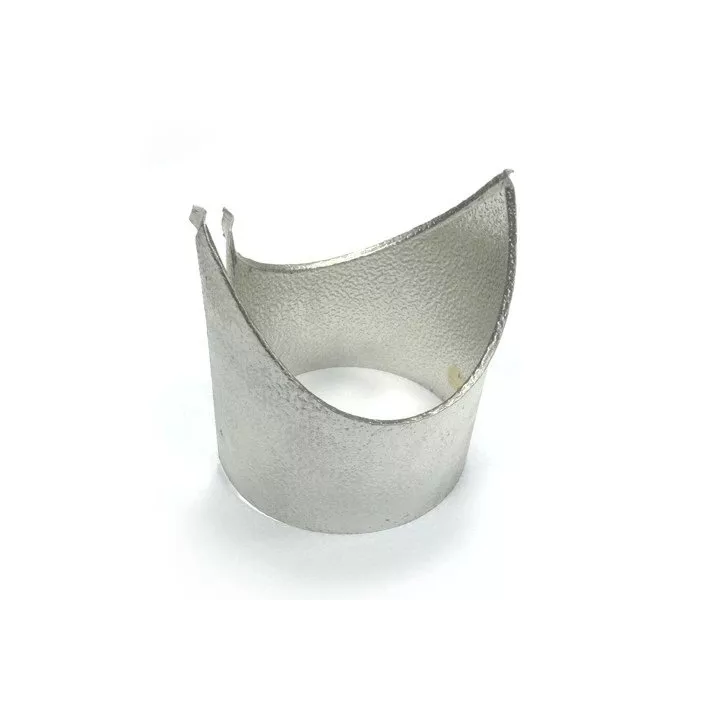

Xplo - protective coat made of Alu Stucco aluminum sheet - stub pipe

Price: zł0.01
Tax included
Protective coats made of Alu Stucco sheet are used to protect the proper insulation made of mineral wool, polyurethane, synthetic rubber, polyethylene and other insulation materials used in thermal insulation against mechanical damage and the destructive effects of moisture and UV radiation. Protective coats, in this case made of metal, also have aesthetic qualities. Alu Stucco is distinguished by a so-called surface structure. orange peel. For indoor and outdoor use. The Alu Stucco cover for the connector is intended for the insulation of tees and branches of heating and technological pipelines, as well as heat and cold protection installations.
diameter
Product availability: Dostępny
Share

Protective coats made of Alu Stucco aluminum sheet are used to protect the proper insulation made of mineral wool, polyurethane, synthetic rubber, polyethylene and other insulation materials used in thermal insulation against mechanical damage and destructive effects of moisture and UV radiation. Protective coats, in this case made of metal, also have aesthetic qualities. Alu Stucco is distinguished by its so-called orange peel. For indoor and outdoor use. The Alu Stucco sheath at the end is intended for insulation of the pipeline and branch pipes in heating and technological installations, as well as heat and cold insulation installations.

Technical data

  • spigot length measured at the highest height - 1.5 D,
  • the end is made of Alu Stucco aluminum sheet with a thickness of 0.8 mm, with an overlap,
  • sheet structure - the so-called an orange peel
  • Alu Stucco sheet resistant to sea water,
  • two 3.2 mm holes for sheet metal screws in each segment.

Caution

  • When ordering, in the Comments tab, indicate the diameter of the pipe from which the end will be a branch in mm
  • The product is only available as a service.
  • The product is made to order, the delivery date is confirmed individually.
  • In case of:
    • large order, the price is set individually,
    • possible price reduction when using thinner sheet metal,
    • crotch made from a different gr. sheet metal indicated by the ordering party - individual calculation,

  • Brand
  • Reference
    33187-64917
  • In stock
    1000 Items
  • MPN
    33187

  • application temperature range
    -196 do +600 °C
  • color
    srebrny
  • surface structure
    "skórka pomarańczy"
  • type of metal
    aluminiowa
  • thickness
    0,8 mm
